Android Operating System Control Module -J1243-. REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the remove front floor mat.

-- Remove the right sill panel. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the right A-pillar lower trim panel on the right side. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the right front seat. Refer to Front Seat, Removing and Installing .

-- Lift the carpet in the area of the Android Operating System Control Module -J1243-.

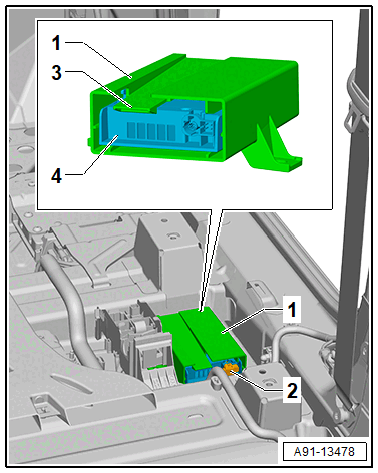

-- Remove the bracket -1- with the Android Operating System Control Module -J1243- from the body threaded pin.

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -2-.

-- Release the retaining tab -3- on the bracket -1-.

-- Remove the Android Operating System Control Module -J1243- -4- from the bracket -1-.
