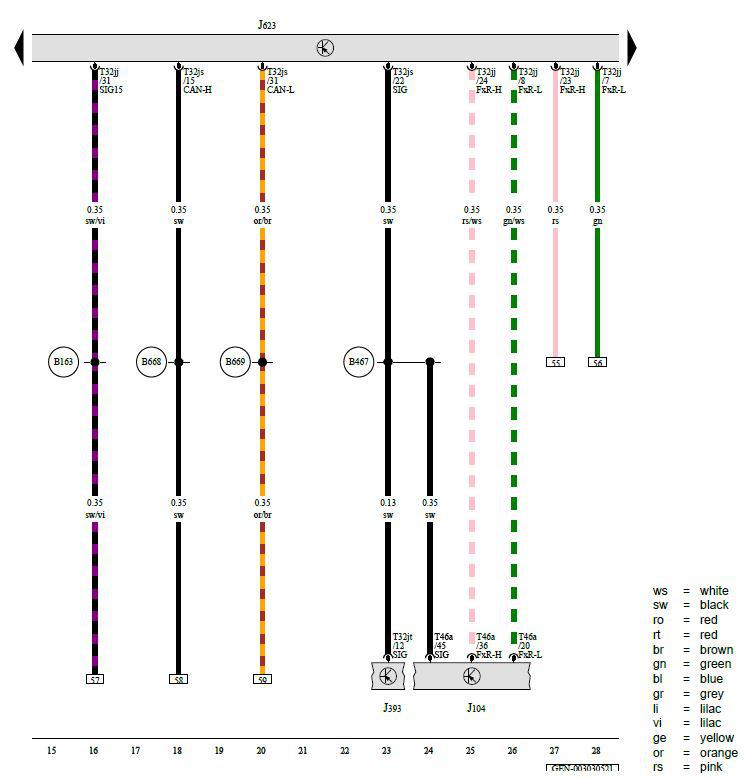

ABS Control Module, Comfort System Central Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J393 -  Comfort System Central Control Module

J623 -  Engine/Motor Control Module

T32jj -  32-Pin Connector, Gray

T32js -  32-Pin Connector, Blue

T32jt -  32-Pin Connector, Black

T46a -  46-Pin Connector, Black

B163 -  Positive Connection 1 (15) (in Interior Wiring Harness)

B467 -  Connection 3 (in Main Wiring Harness)

B668 -  CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669 -  CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
