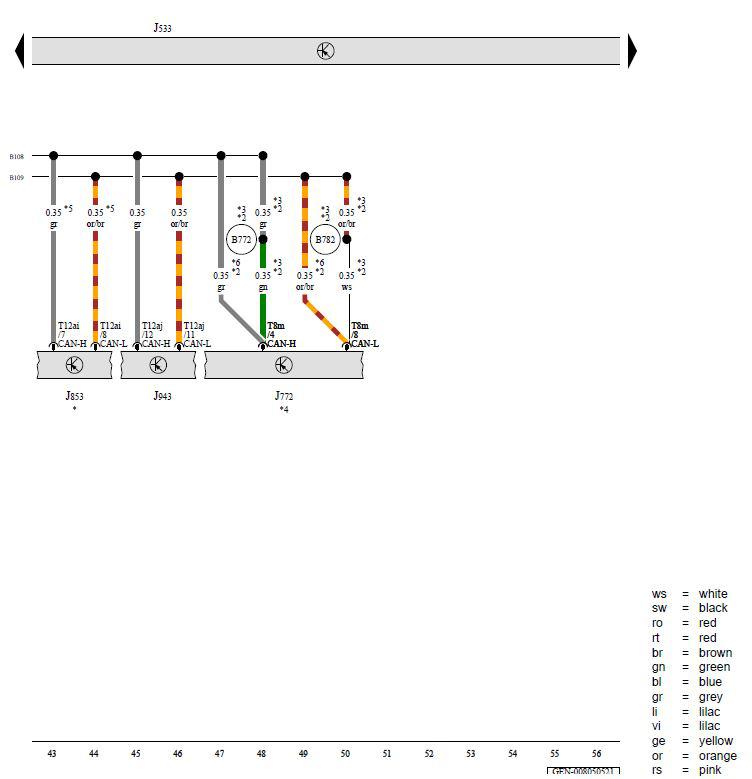

Data Bus on Board Diagnostic Interface, Rearview Camera System Control Module, Night Vision System Control Module, Engine Sound Generator Control Module
J533 - Data Bus on Board Diagnostic Interface
J772 - Rearview Camera System Control Module
J853 - Night Vision System Control Module
J943 - Engine Sound Generator Control Module
T8m - 8-Pin Connector, Black
T12ai - 12-Pin Connector, Black
T12aj - 12-Pin Connector, Black
B108 - CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109 - CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B772 - CAN Bus Extended High Connection 4 (in Main Wiring Harness)
B782 - CAN Bus Extended Low Connection 4 (in Main Wiring Harness)
* - Refer to Applicable Night Vision System Wiring Diagram
*2 - For Vehicles with Rearview Camera System
*3 - Through June 2021
*4 - Refer to Applicable Wiring Diagram for the Rearview Camera (Rear Assist)
*5 - For Vehicles with Night Vision System
*6 - From June 2021
