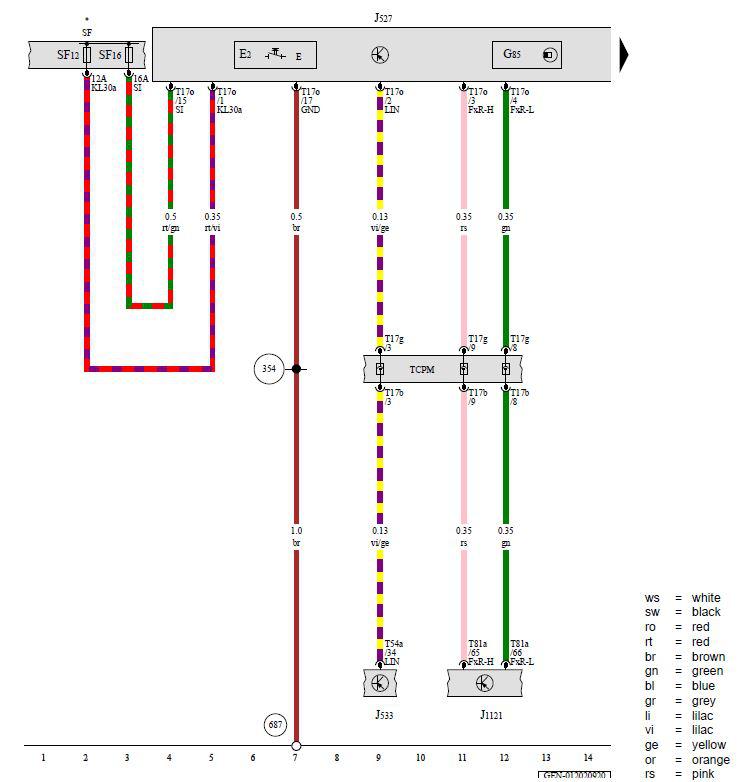

Steering Column Electronics Control Module, Data Bus on Board Diagnostic Interface, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

E -  Windshield Wiper Switch

E2 -  Turn Signal Switch

G85 -  Steering Angle Sensor

J527 -  Steering Column Electronics Control Module

J533 -  Data Bus on Board Diagnostic Interface

J1121 -  Driver Assistance Systems Control Module

SF -  Fuse Panel F

SF12 -  Fuse 12 (On Fuse Panel F)

SF16 -  Fuse 16 (On Fuse Panel F)

T17b -  17-Pin Connector, Blue

T17g -  17-Pin Connector, Blue

T17o -  17-Pin Connector, Yellow

T54a -  54-Pin Connector, Black

T81a -  81-Pin Connector, Black

TCPM -  Coupling Point on Instrument Panel, Center

354 -  Ground Connection 6 (in Instrument Panel Wiring Harness)

687 -  Ground Connection 1 on Center Tunnel

* -  Refer to Applicable Wiring Diagram for Fuse Positions
