External Multimedia Device Connection, Removing And Installing: Notes
WARNING: This page is about a different car, the 2024 Audi Q3 and 2023 Audi Q3. However, it is still accessible from the selected car via links, so may be relevant.

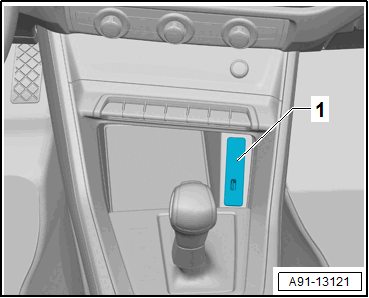

The USB Distributor -R293- -1- is located in the front center console storage compartment.
If the USB Distributor -R293- is being replaced, the following procedure applies:
-- Connecting and switching on the Vehicle Diagnostic Tester.
-- Switch the ignition on.
-- Select and start the Diagnostic operating mode.
-- Select the Test plan tab.
-- Select the Select individual test button and select the following tree structure consecutively:
- Diagnostic-capable systems
- 005F - Information Electronics Control Module 1 - J794 (MIB 2+) or 005F - Information Electronics Control Module 1 - J794 (MIB 3)
- 005F - Information Electronics Control Module 1, functions
- 0743 - USB Distributor -R293-, replacing
-- Start the selected program and follow the instructions on the Vehicle Diagnostic Tester display.
