Lane Change Assistance Control Module J769/J770, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi Q4 e-tron and 2023 Audi Q4 e-tron. However, it is still accessible from the selected car via links, so may be relevant.

If the Control Module Is Replaced, the Test Plan to Replace the Control Module Must Be Performed.

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

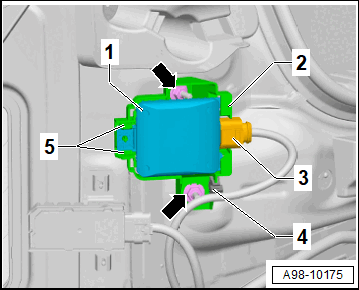

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retaining tabs -5-.

-- Remove the control module -1-.

Remove the control module bracket

-- Remove the wiring harness bracket -4-.

-- Remove the nuts -arrows-.

-- Remove the bracket -2-.
