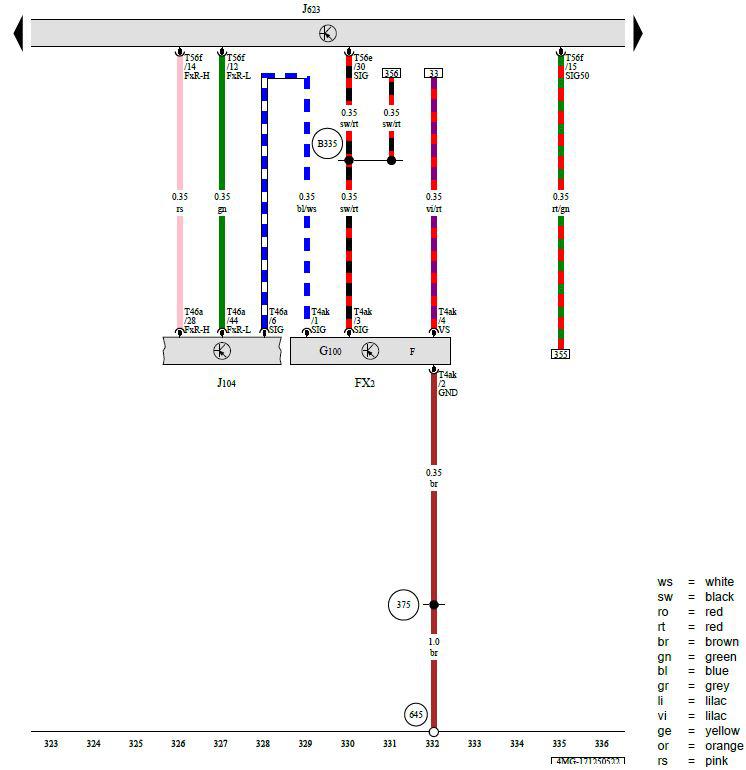

Brake Pedal Switch, Abs Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

F -  Brake Lamp Switch

FX2 -  Brake Pedal Switch

G100 -  Brake Pedal Position Sensor

J104 -  ABS Control Module

J623 -  Engine/Motor Control Module

T4ak -  4-Pin Connector, Black

T46a -  46-Pin Connector, Black

T56e -  56-Pin Connector, Black, Green

T56f -  56-Pin Connector, Black, Black

375 -  Ground Connection 10 (in Main Wiring Harness)

645 -  Ground Connection 1 on Bulkhead

B335 -  Connection 54 (in Main Wiring Harness) 1
