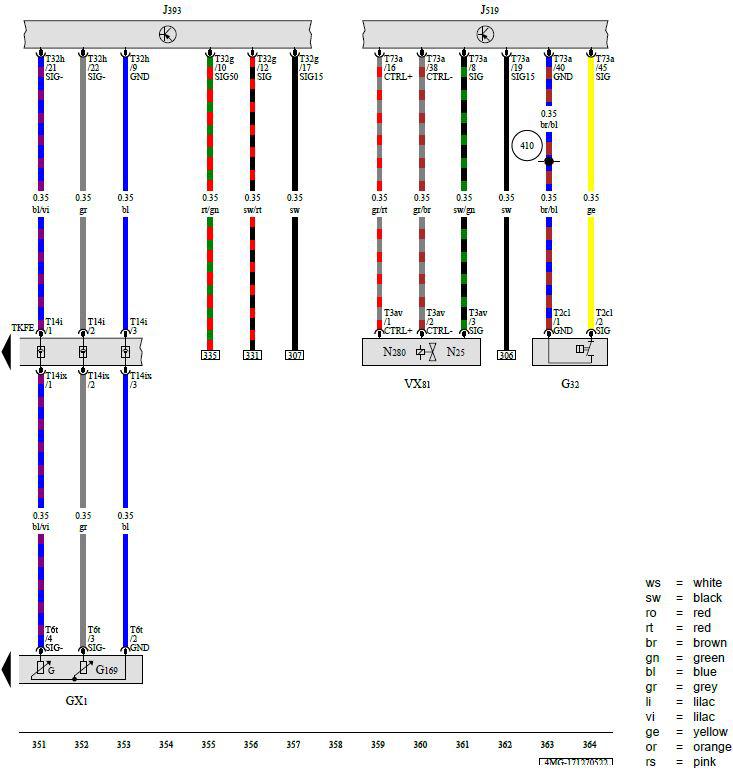

Fuel Delivery Unit, Engine Coolant Level Sensor, Comfort System Central Control Module, Vehicle Electrical System Control Module, A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

G -  Fuel Level Sensor

GX1 -  Fuel Delivery Unit

G32 -  Engine Coolant Level Sensor

G169 -  Fuel Level Sensor 2

J393 -  Comfort System Central Control Module

J519 -  Vehicle Electrical System Control Module

N25 -  A/C Clutch

N280 -  A/C Compressor Regulator Valve

T2cl -  2-Pin Connector, Black

T3av -  3-Pin Connector, Black

T6t -  6-Pin Connector, Black

T14i -  14-Pin Connector, Black

T14ix -  14-Pin Connector, Black

T32g -  32-Pin Connector, Naturally Cloudy, Black

T32h -  32-Pin Connector, Blue

T73a -  73-Pin Connector, Black

TKFE -  Fuel Delivery Unit Coupling Point

VX81 -  A/C Compressor

410 -  Sensor Ground Connection 1 (in Main Wiring Harness)
