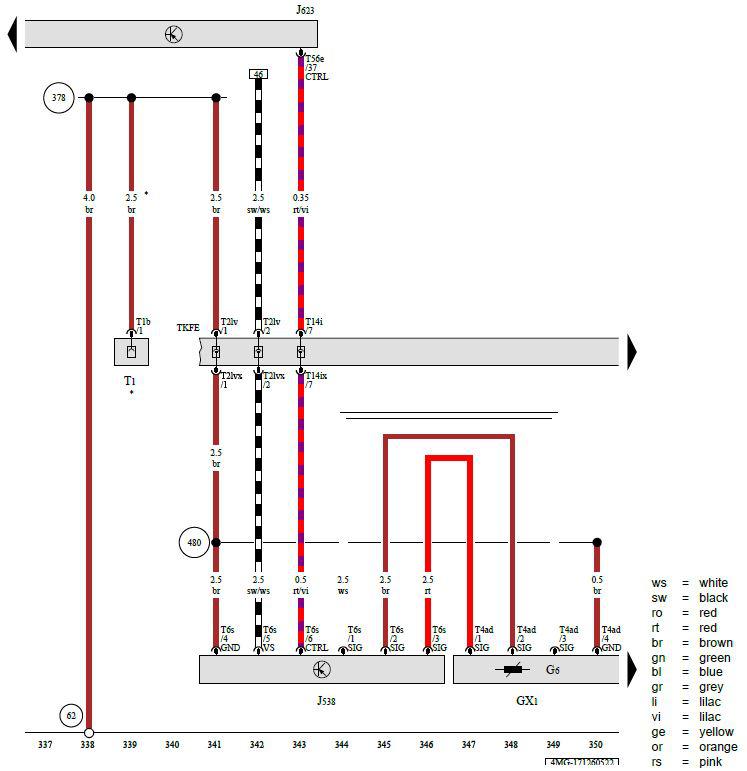

Fuel Delivery Unit, Fuel Pump Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX1 -  Fuel Delivery Unit

G6 -  Transfer Fuel Pump

J538 -  Fuel Pump Control Module

J623 -  Engine/Motor Control Module

T1 -  1-Pin Connector, Near the Fuel Filler Neck

T1b -  1-Pin Connector, Black

T2lv -  2-Pin Connector, Black

T2lvx -  2-Pin Connector, Black

T4ad -  4-Pin Connector, Black

T6s -  6-Pin Connector, Black

T14i -  14-Pin Connector, Black

T14ix -  14-Pin Connector, Black

T56e -  56-Pin Connector, Black, Green

TKFE -  Fuel Delivery Unit Coupling Point

62 -  Ground Connection on Right C-Pillar

378 -  Ground Connection 13 (in Main Wiring Harness)

480 -  Ground Connection (in Fuel Tank Wiring Harness)

* -  For USA Only
