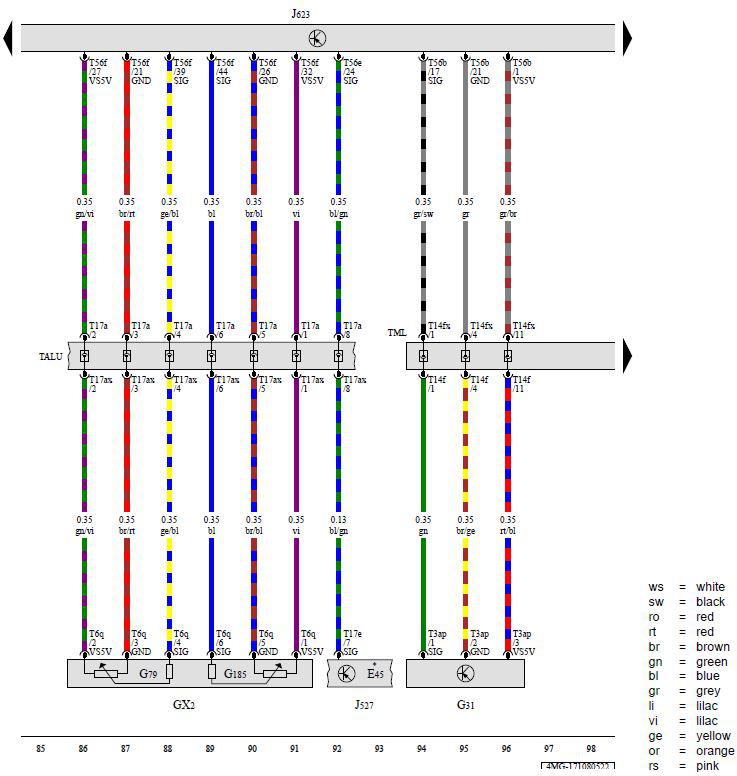

Accelerator Pedal Module, Charge Air Pressure Sensor, Steering Column Electronics Control Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

E45 -  Cruise Control Switch

GX2 -  Accelerator Pedal Module

G31 -  Charge Air Pressure Sensor

G79 -  Accelerator Pedal Position Sensor

G185 -  Accelerator Pedal Position Sensor 2

J527 -  Steering Column Electronics Control Module

J623 -  Engine/Motor Control Module

T3ap -  3-Pin Connector, Black

T6q -  6-Pin Connector, Black

T14f -  14-Pin Connector, Black

T14fx -  14-Pin Connector, Black

T17a -  17-Pin Connector, White

T17ax -  17-Pin Connector, White

T17e -  17-Pin Connector, Yellow

T56b -  56-Pin Connector, Black, White

T56e -  56-Pin Connector, Black, Green

T56f -  56-Pin Connector, Black, Black

TALU -  Coupling Point on Left A-Pillar, Bottom

TML -  Coupling Point in Engine/Motor Compartment, Left

* -  For Vehicles with Cruise Control System
