Overview - Assembly Mounts

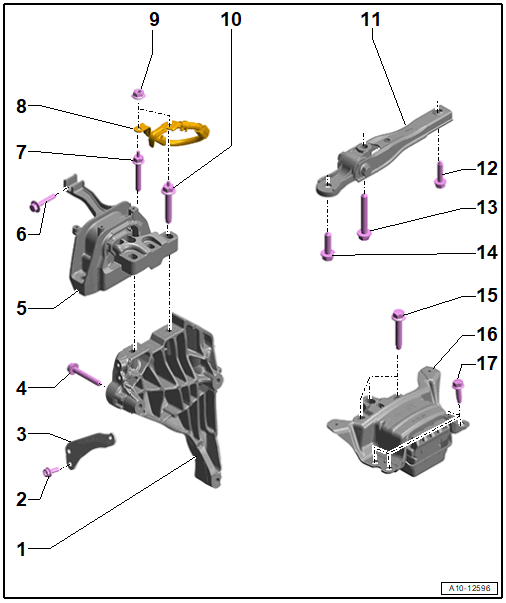

Fig 1: Exploded View Of Assembly Mounts

Courtesy of AUDI OF AMERICA, LLC

1 - Engine Support
- Removing and Installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
2 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
3 - Bracket
- Equipped on some models
4 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
5 - Engine Mount
- With support arm
- Removing and Installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
6, 7 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
8 - Ground Wire
9 - Nut
- Tightening Specification. Refer to the appropriate Wiring Diagram.
10 - Bolt
- Tightening specification. Refer to OVERVIEW - ASSEMBLY MOUNTS
11 - Pendulum Support
- Removing and Installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
12 - Bolt
- 130 Nm +90°
- Replace after removing
13, 14 - Bolt
- 60 Nm +90°
- Replace after removing
15 - Bolt
- 60 Nm +90°
- Replace after removing
16 - Transmission Mount
- Removing and Installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
17 - Bolt
- 50 Nm +90°
- Replace after removing
