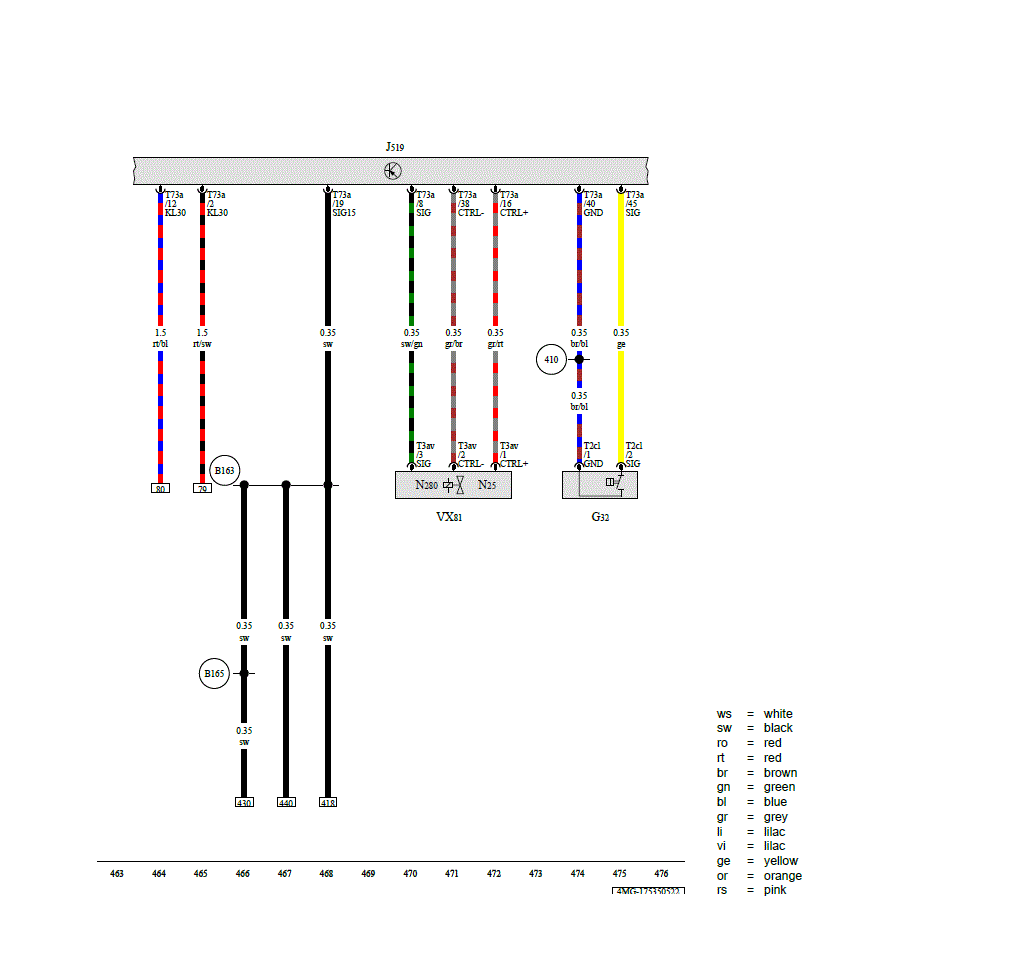

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, A/C Compressor

Courtesy of AUDI OF AMERICA, LLC

G32

Engine Coolant Level Sensor

J519

Vehicle Electrical System Control Module Type:BT, Slpdok:, Aim:BTJ519

N25

A/C Clutch

N280

A/C Compressor Regulator Valve Type:BT, Slpdok:, Aim:BTN280

T2cl

2-Pin Connector, Black

T3av

3-Pin Connector, Black

T73a

73-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT73a

VX81

A/C Compressor

410

Sensor Ground Connection 1 (in Main Wiring Harness)

B163

Positive Connection 1 (15) (in Interior Wiring Harness)

B165

Positive Connection 2 (15) (in Interior Wiring Harness)
