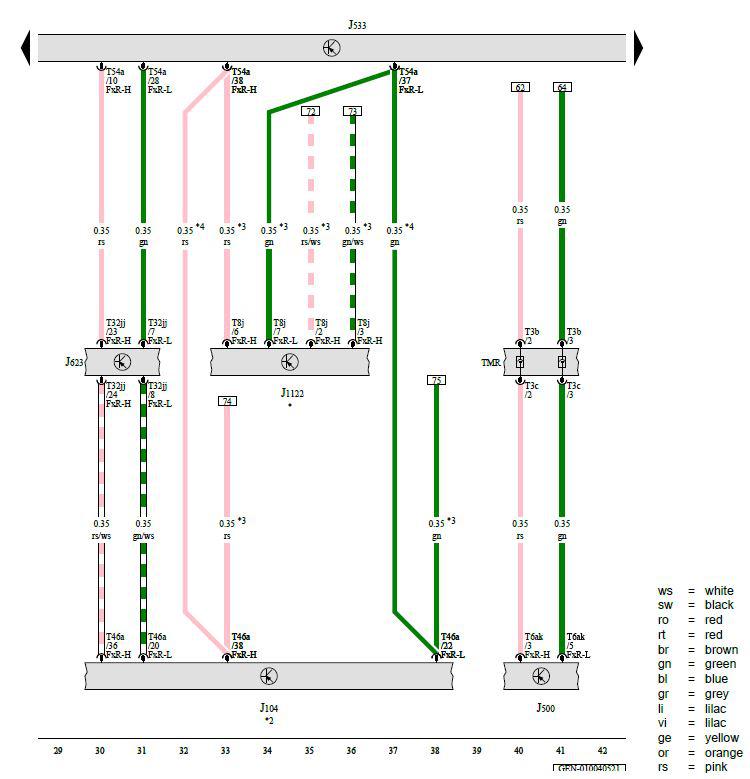

ABS Control Module, Power Steering Control Module, Data Bus on Board Diagnostic Interface, Engine/Motor Control Module, Laser Distance Regulation Control Module

Courtesy of AUDI OF AMERICA, LLC

J104 -  ABS Control Module

J500 -  Power Steering Control Module

J533 -  Data Bus on Board Diagnostic Interface

J623 -  Engine/Motor Control Module

J1122 -  Laser Distance Regulation Control Module

T3b -  3-Pin Connector, Black

T3c -  3-Pin Connector, Black

T6ak -  6-Pin Connector, Brown

T8j -  8-Pin Connector, Black

T32jj -  32-Pin Connector, Gray

T46a -  46-Pin Connector, Black

T54a -  54-Pin Connector, Black

TMR -  Coupling Point in Engine/Motor Compartment, Right

* -  Refer to Applicable Wiring Diagram for Adaptive Cruise Control

*2 -  Refer to Applicable Wiring Diagram for ABS

*3 -  For Vehicles with Adaptive Cruise Control (ACC)

*4 -  For Vehicles with Cruise Control System
