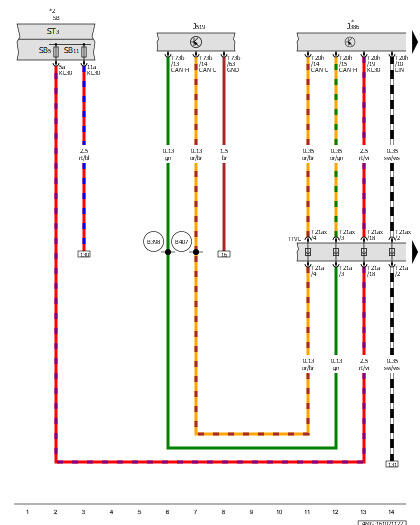

Driver Door Control Module, Vehicle Electrical System Control Module

Courtesy of AUDI

J386

Driver Door Control Module

J519

Vehicle Electrical System Control Module

SB

Fuse Panel B

ST3

Fuse Panel 3

SB5

Fuse 5 (On Fuse Panel B)

SB11

Fuse 11 (On Fuse Panel B)

T20h

20-Pin Connector, White

T21a

21-Pin Connector, Black

T21ax

21-Pin Connector, Black

T73b

73-Pin Connector, Black, Naturally Cloudy

TTVL

Left Front Door Coupling Point

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Interior Lamps

*2

Refer to Applicable Wiring Diagram for Fuse Positions
