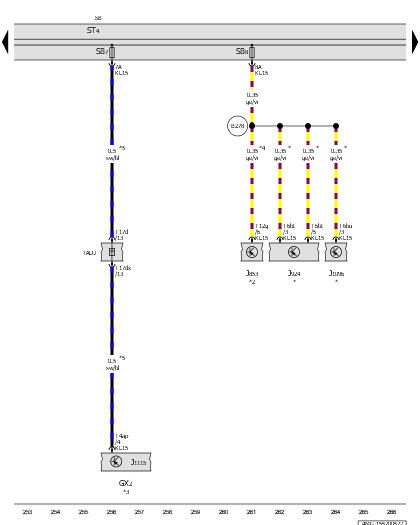

Accelerator Pedal Module, Night Vision System Control Module, Sway Stabilization Control Module, Sway Stabilization Control Module 2, Fuse Panel B, Fuse Panel 4

Courtesy of AUDI OF AMERICA, LLC

GX2

Accelerator Pedal Module

J853

Night Vision System Control Module

J924

Sway Stabilization Control Module

J1096

Sway Stabilization Control Module 2

J1115

Active Accelerator Pedal Control Module

SB

Fuse Panel B

ST4

Fuse Panel 4

SB7

Fuse 7 (On Fuse Panel B)

SB8

Fuse 8 (On Fuse Panel B)

T4ap

4-Pin Connector, Black

T6bt

6-Pin Connector, Black

T6bu

6-Pin Connector, Black

T12g

12-Pin Connector, Black

T17d

17-Pin Connector, Green

T17dx

17-Pin Connector, Green

TALU

Coupling Point on Left A-Pillar, Bottom

B278

Positive Connection 2 (15a) (in Main Wiring Harness)

*

Refer to Applicable Dynamic Sway Stabilization Wiring Diagram

*2

Refer to Applicable Night Vision System Wiring Diagram

*3

Refer to Applicable Engine Wiring Diagram

*4

For Vehicles with Night Vision System

*5

For Vehicles with Hybrid Drive
