Airbag Connector, Replacing: Removing
-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

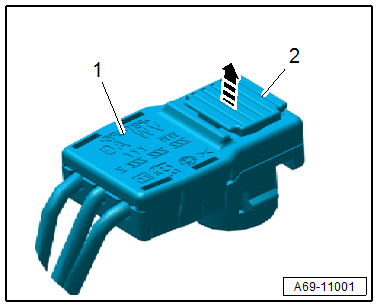

-- Release the connector lock -2- for the connector -1- with a small flat-head screwdriver in direction of -arrow-.

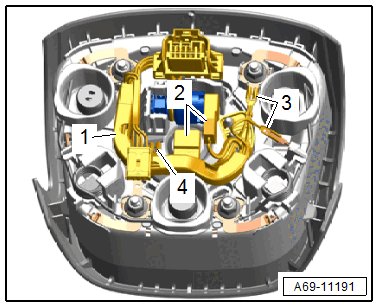

-- Disconnect the connectors -2- from the Front Passenger Airbag Igniter 1 Driver Airbag Igniter -N95- and Front Passenger Airbag Release Valve Igniter Driver Airbag Release Valve Igniter -N490-.
-- Disconnect the connectors -3 and 4- by releasing the retaining tab.
-- Disengage and remove the wiring harness -1- at the brackets.
