Securing On Engine And Transmission Holder

Special tools and workshop equipment required

• Holding Plate:VW 309A
• or Holding Plate:VW 309 A

  Courtesy of AUDI OF AMERICA, LLC

• Transmission Support:VW 353

  Courtesy of AUDI OF AMERICA, LLC

• Engine and Gearbox Bracket:VAS 6095A

  Courtesy of AUDI OF AMERICA, LLC

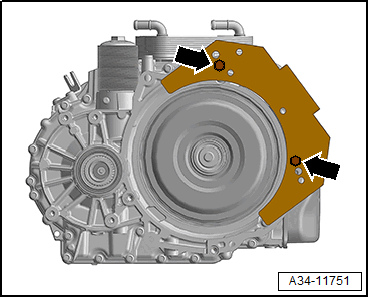

Transmission, Securing to Engine/Transmission Holder

Courtesy of AUDI OF AMERICA, LLC

-- Mount the transmission to the Transmission Support:VW 353  and place it, with the Holding Plate:VW 309  in the Engine and Gearbox Bracket VAS 6095A:VAS 6095  .

Tip

Fluid leakage when turning the transmission.

• Vents for the transmission housing must be closed when turning a filled transmission on the engine and transmission holder with the bleeder downward.
