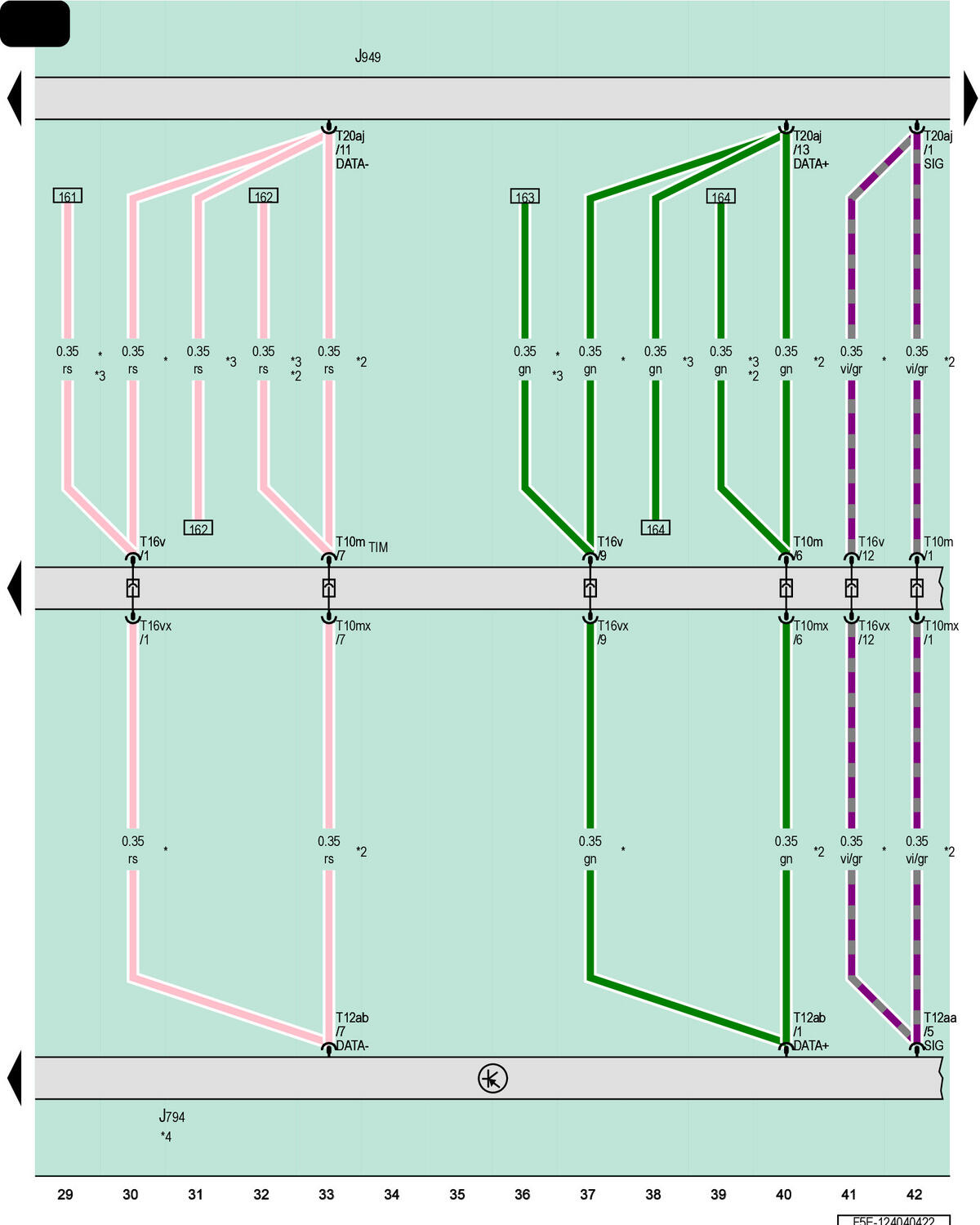

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit

Courtesy of AUDI OF AMERICA, LLC

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T10m

10-Pin Connector, Black

T10mx

10-Pin Connector, Black

T12aa

12-Pin Connector, Blue

T12ab

12-Pin Connector, Green

T16v

16-Pin Connector, Brown

T16vx

16-Pin Connector, Brown

T20aj

20-Pin Connector, Naturally Cloudy

TIM

Coupling Point in Interior, Center

*

From December 2019

*2

Through November 2019

*3

For Vehicles with Bang & Olufsen Sound System

*4

Refer to Applicable MMI (Information Electronics) Wiring Diagram
