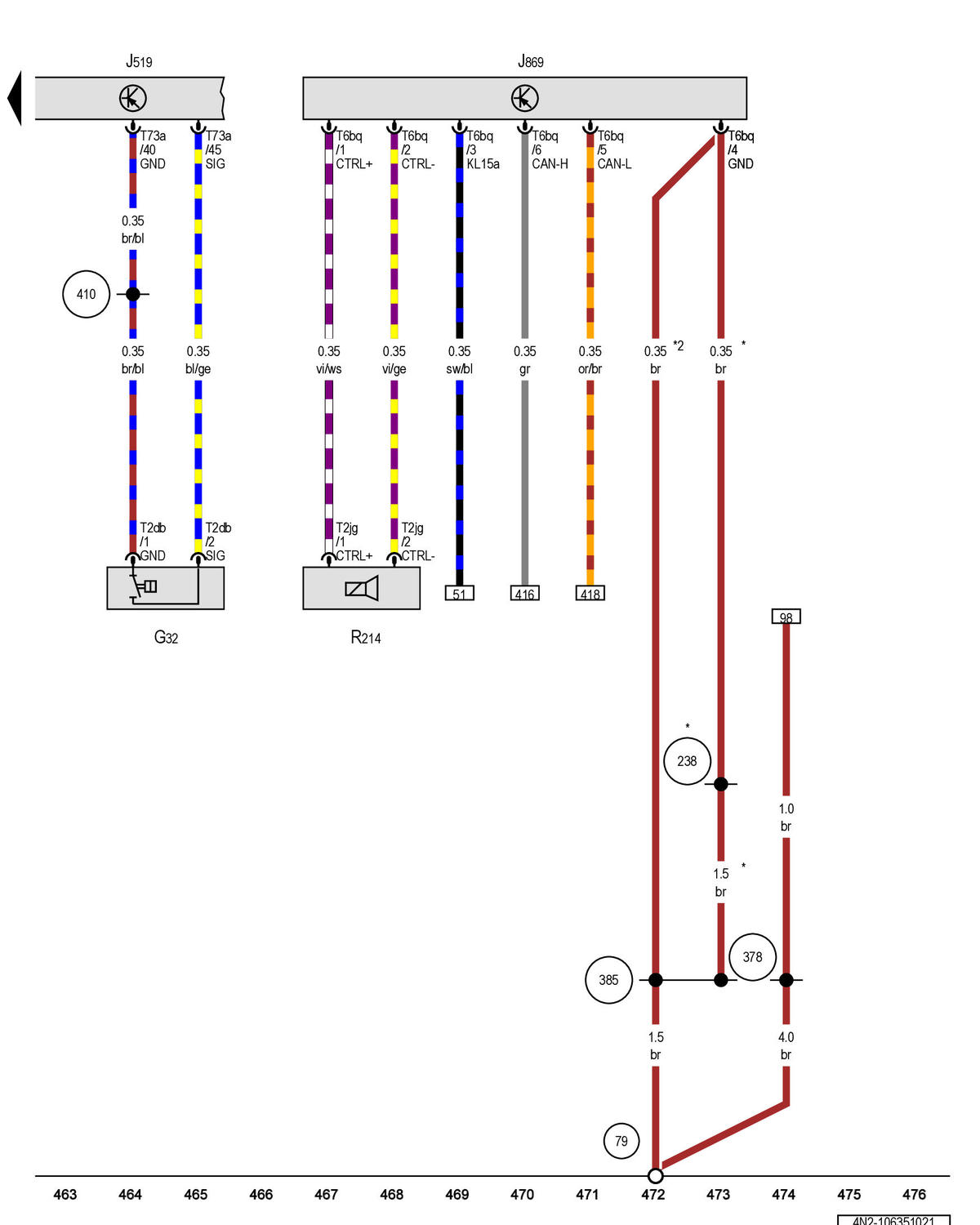

Engine Coolant Level Sensor, Vehicle Electrical System Control Module, Structure-Borne Sound Control Module, Structure-Borne Sound Actuator

Courtesy of AUDI OF AMERICA, LLC

G32

Engine Coolant Level Sensor

J519

Vehicle Electrical System Control Module

J869

Structure-Borne Sound Control Module

R214

Structure-Borne Sound Actuator

T2db

2-Pin Connector, Black

T2jg

2-Pin Connector, Black

T6bq

6-Pin Connector, Black

T73a

73-Pin Connector, Black, Black

79  Ground Connection on Left B-Pillar

238  Ground Connection 1 (in Interior Wiring Harness)

378  Ground Connection 13 (in Main Wiring Harness)

385  Ground Connection 20 (in Main Wiring Harness)

410  Sensor Ground Connection 1 (in Main Wiring Harness)

*  Running Change

*2  Omitted as a Running Change
