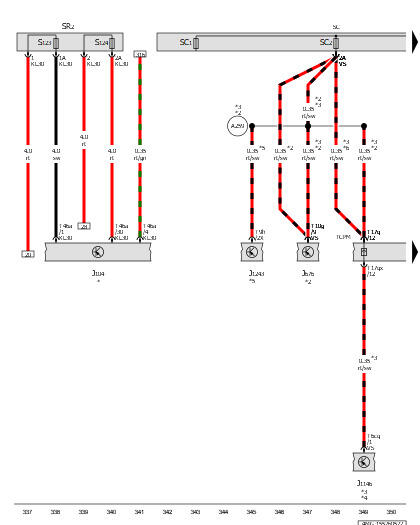

Abs Control Module, Chip Card Reader Control Module, Mobile Device Charger 1, Android Operating System Control Module, Fuse Panel C, Relay And Fuse Panel 2, Abs Control Module Fuse 2
J104
ABS Control Module
J676
Chip Card Reader Control Module
J1146
Mobile Device Charger 1
J1243
Android Operating System Control Module
SC
Fuse Panel C
SC1
Fuse 1 (On Fuse Panel C)
SC2
Fuse 2 (On Fuse Panel C)
SR2
Relay and Fuse Panel 2
S123
ABS Control Module Fuse 1
S124
ABS Control Module Fuse 2
T6cq
6-Pin Connector, Black
T9h
9-Pin Connector, Blue
T10g
10-Pin Connector, Black
T17q
17-Pin Connector, Black
T17qx
17-Pin Connector, Black
T46a
46-Pin Connector, Black
TCPM
Coupling Point on Instrument Panel, Center
A259
Connection 3 (in Instrument Panel Wiring Harness)
*
Refer to Applicable Wiring Diagram for ABS
*2
For Vehicles with Japan Equipment
*3
For Vehicles with a Cell Phone/Telephone Prep
*4
Refer to Applicable Wiring Diagram
*5
For Vehicles with Electrical Interface for External Usage
*6
For Vehicles Without Japan Equipment
