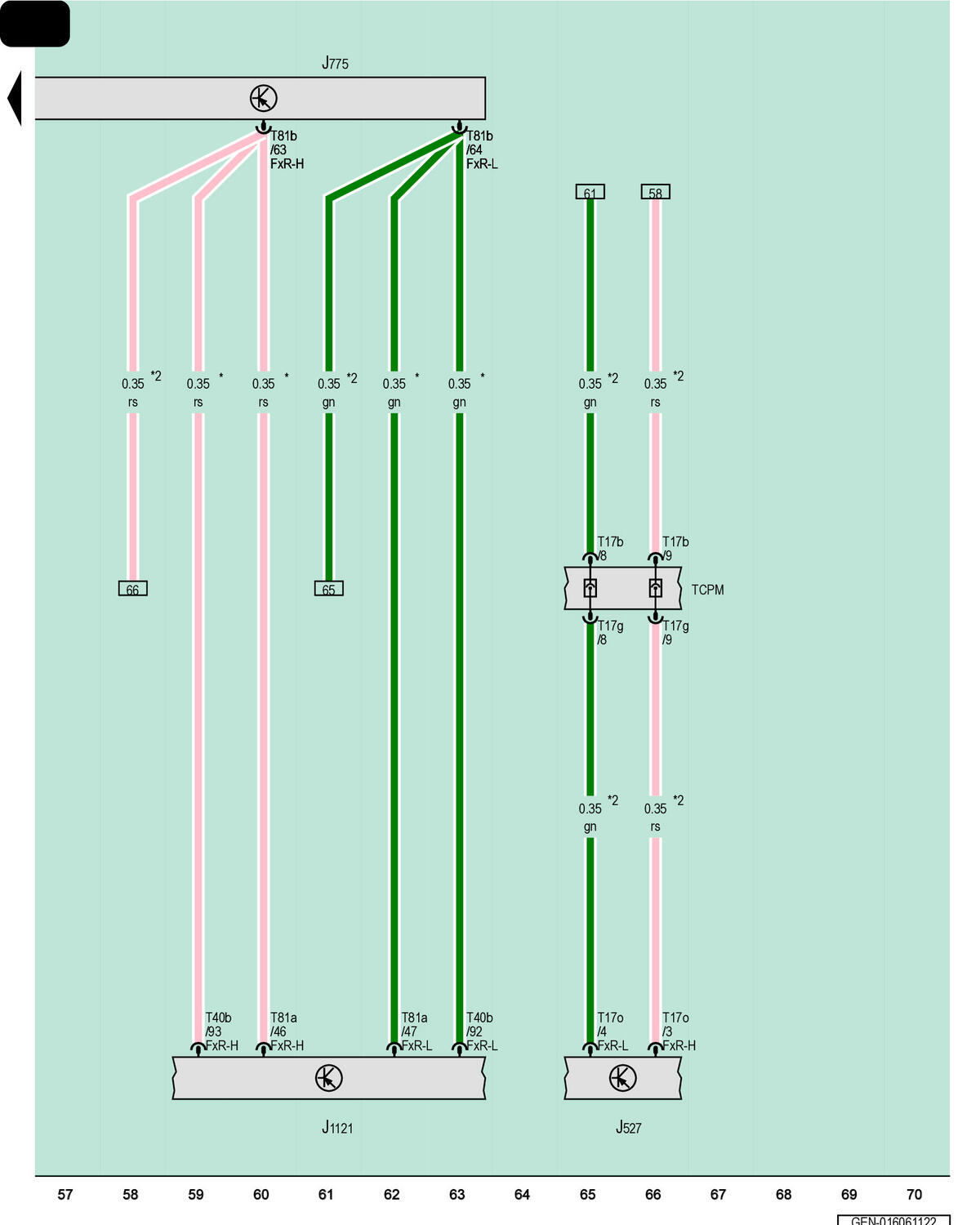

Steering Column Electronics Control Module, Drivetrain Control Module, Driver Assistance Systems Control Module

Courtesy of AUDI OF AMERICA, LLC

J527

Steering Column Electronics Control Module

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

T17b

17-Pin Connector, Blue

T17g

17-Pin Connector, Blue

T17o

17-Pin Connector, Yellow

T40b

40-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

*

For Driver Assistance System

*2

Depending on Equipment
