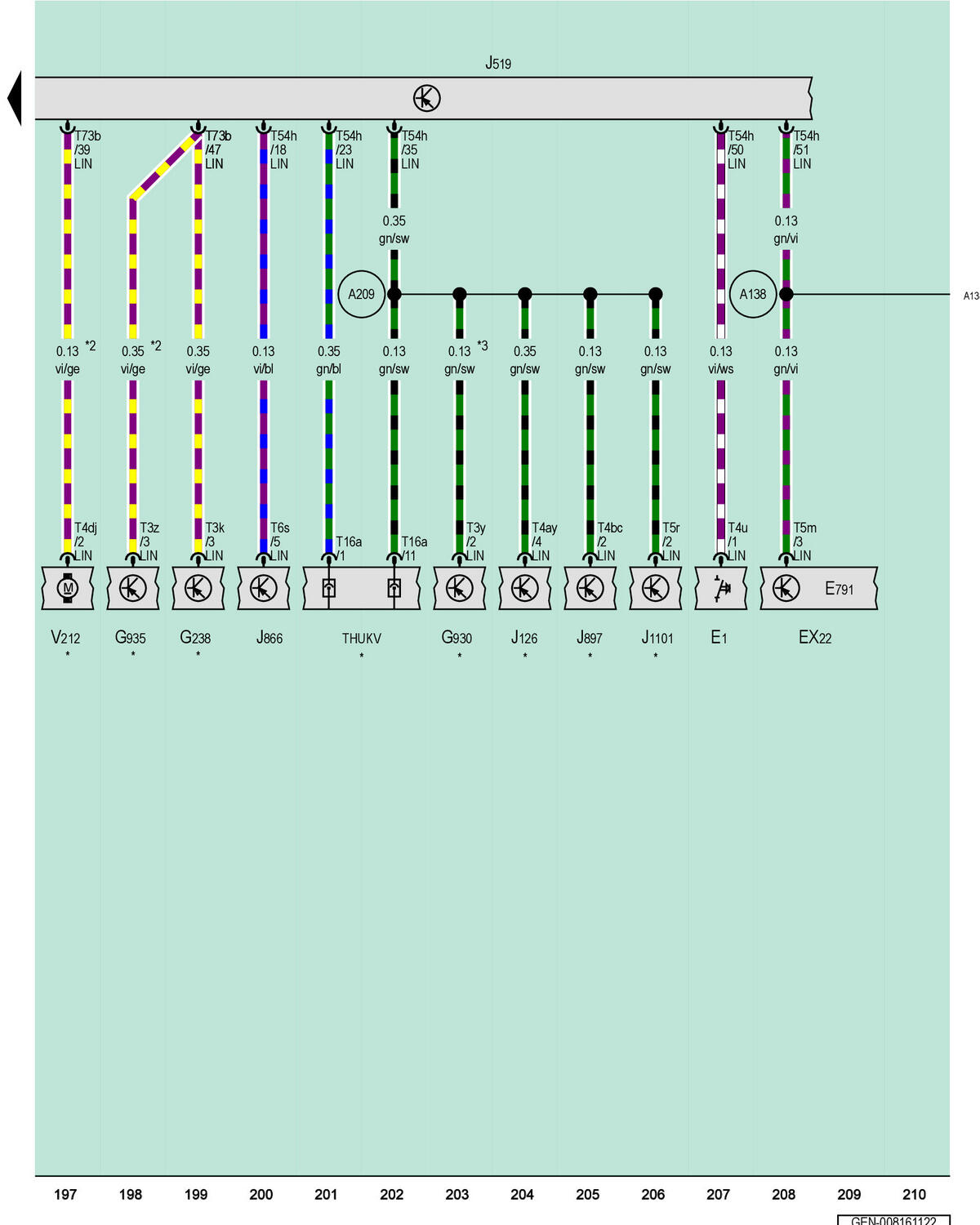

Light Switch, Air Quality Sensor, Fresh Air Blower Control Module, Vehicle Electrical System Control Module, Power Adjustable Steering Column Control Module, Ionizer Control Module, Fragrance Diffuser System Control Module
E1
Light Switch
EX22
Center Instrument Panel Switch Module
E791
Control Unit 1 for Driving and Convenience Functions
G238
Air Quality Sensor
G930
A/C System Particulate Matter Concentration Sensor
G935
Exterior Air Quality and Humidity Sensor
J126
Fresh Air Blower Control Module
J519
Vehicle Electrical System Control Module
J866
Power Adjustable Steering Column Control Module
J897
Ionizer Control Module
J1101
Fragrance Diffuser System Control Module
T3k
3-Pin Connector, Black
T3y
3-Pin Connector, Blue
T3z
3-Pin Connector, Brown
T4ay
4-Pin Connector, Black
T4bc
4-Pin Connector, Black
T4dj
4-Pin Connector, Black
T4u
4-Pin Connector, Red
T5m
5-Pin Connector, Brown
T5r
5-Pin Connector, Black
T6s
6-Pin Connector, Brown
T16a
16-Pin Connector, Black
T54h
54-Pin Connector, Black
T73b
73-Pin Connector, Black
THUKV
Front Heating and Air Conditioning Coupling Point
V212
Left B-Pillar/Footwell Shut-Off Door Motor
A138
Connection 2 (in Instrument Panel Wiring Harness)
A209
LIN Bus Connection 1 (in Instrument Panel Wiring Harness)
*
Refer to Applicable A/C System Wiring Diagram
*2
Climate Control, Comfort Climatronic
*3
Depending on Equipment
