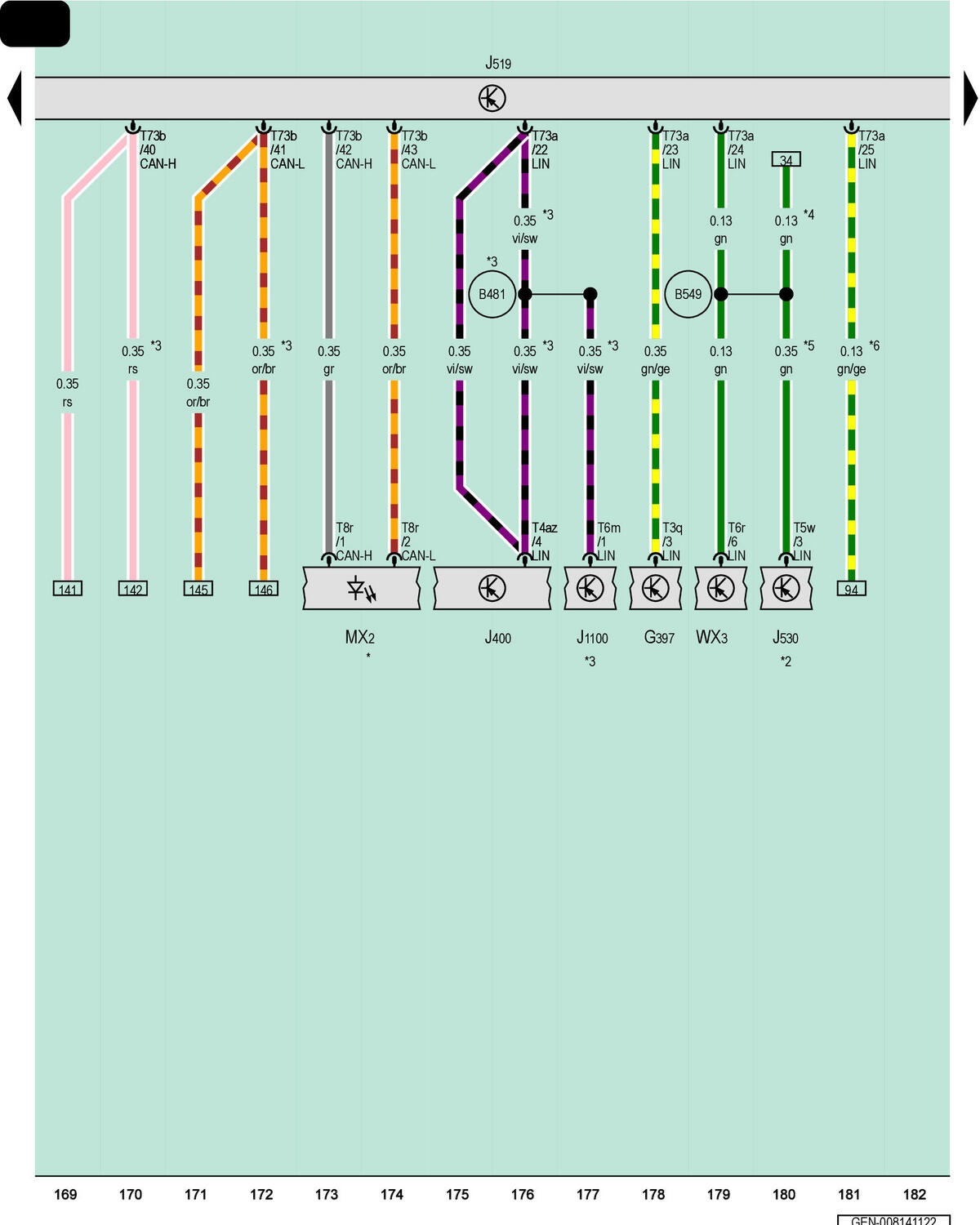

Rain/Light Recognition Sensor, Wiper Motor Control Module, Vehicle Electrical System Control Module, Garage Door Opener Control Module, Windshield Washer Pump Control Module, Right Front Headlamp, Front Roof Module
G397
Rain/Light Recognition Sensor
J400
Wiper Motor Control Module
J519
Vehicle Electrical System Control Module
J530
Garage Door Opener Control Module
J1100
Windshield Washer Pump Control Module
MX2
Right Front Headlamp
T3q
3-Pin Connector, Black
T4az
4-Pin Connector, Black
T5w
5-Pin Connector, Black
T6m
6-Pin Connector, Black
T6r
6-Pin Connector, Black
T8r
8-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
WX3
Front Roof Module
B481
Connection 17 (in Main Wiring Harness)
B549
LIN Bus Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram for LED Headlamps
*2
Refer to Applicable Wiring Diagram for the Garage Door Opener
*3
Optional Equipment
*4
For Vehicles with Driver Assistance Systems Front Camera
*5
For Vehicles with Garage Door Opener
*6
For Vehicles with Seat Ventilation
