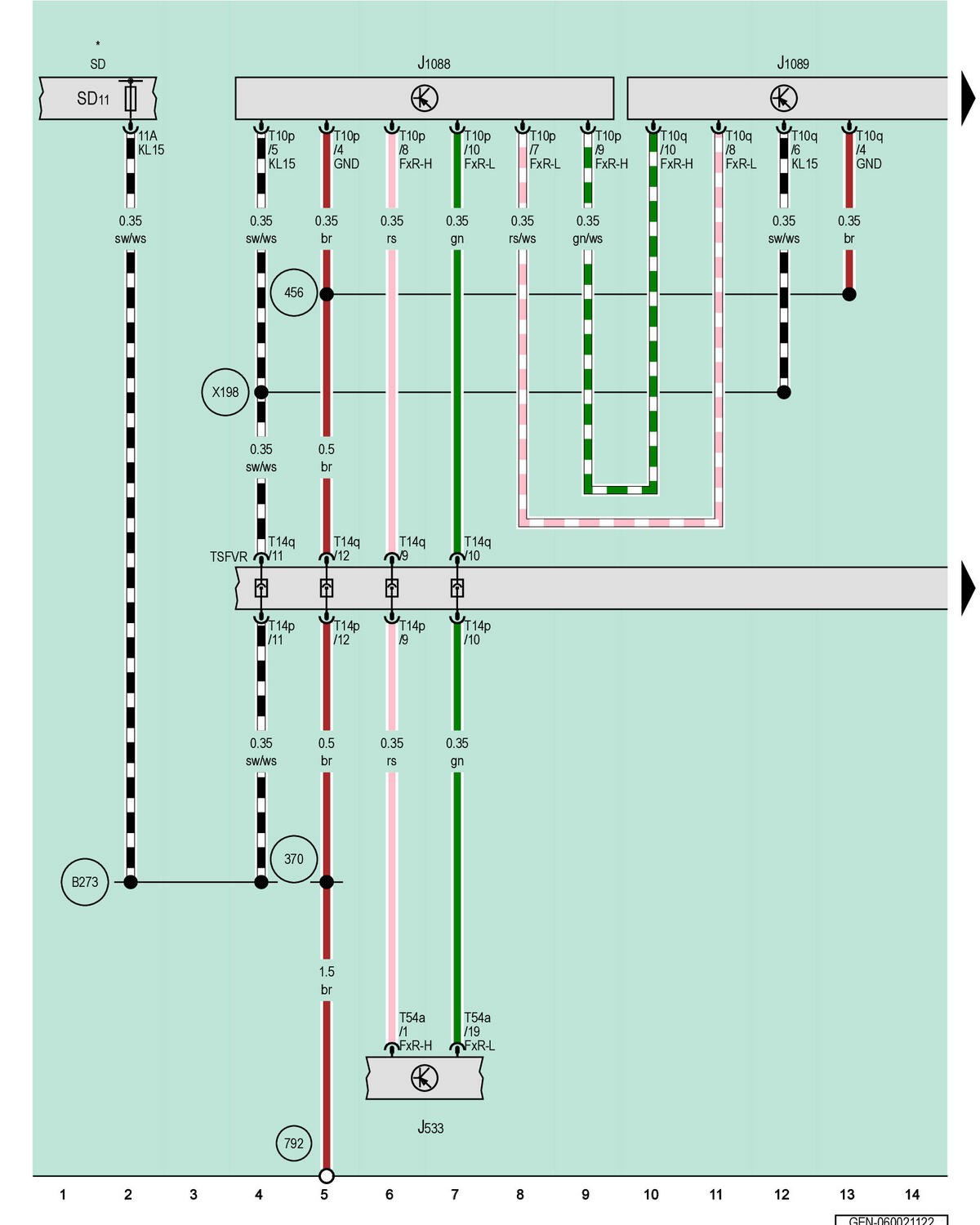

Data Bus On Board Diagnostic Interface, Control Module For Left Front Object Detection Radar Sensor, Control Module For Right Front Object Detection Radar Sensor
J533
Data Bus on Board Diagnostic Interface
J1088
Control Module for Left Front Object Detection Radar Sensor
J1089
Control Module for Right Front Object Detection Radar Sensor
SD
Fuse Panel D
SD11
Fuse 11 (On Fuse Panel D)
T10p
10-Pin Connector, Black
T10q
10-Pin Connector, Black
T14p
14-Pin Connector, Black
T14q
14-Pin Connector, Black
T54a
54-Pin Connector, Black
TSFVR
Coupling Point on Right Front Bumper
370
Ground Connection 5 (in Main Wiring Harness)
456
Ground Connection 1 (in Front Bumper Wiring Harness)
792
Ground Connection in Right Front Wheel Housing
B273
Positive Connection (15) (in Main Wiring Harness)
X198
Connection 2 (in Lower Front Bumper Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
