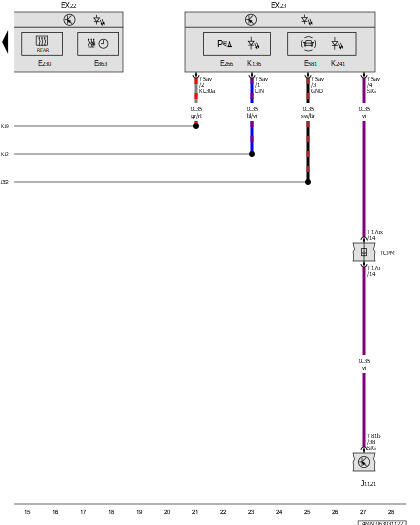

Center Instrument Panel Switch Module, Center Console Switch Module 1, Driver Assistance Systems Control Module

Courtesy of AUDI

EX22

Center Instrument Panel Switch Module

EX23

Center Console Switch Module 1

E230

Rear Window Defogger Button

E266

Parking Aid Button

E581

Parallel Parking Assistance Button

E863

Auxiliary Coolant Heater Button

J1121

Driver Assistance Systems Control Module

K136

Parking Aid Indicator Lamp

K241

Parallel Parking Assistance Indicator Lamp

T5av

5-Pin Connector, Black

T17o

17-Pin Connector, Black

T17ox

17-Pin Connector, Black

T81b

81-Pin Connector, Black

TCPM

Coupling Point on Instrument Panel, Center

1352

Ground Connection 5 (in Center Console Wiring Harness)

K12

LIN Bus Connection (in Center Console Wiring Harness)

K19

Connection 2 (30) (in Center Console Wiring Harness)
