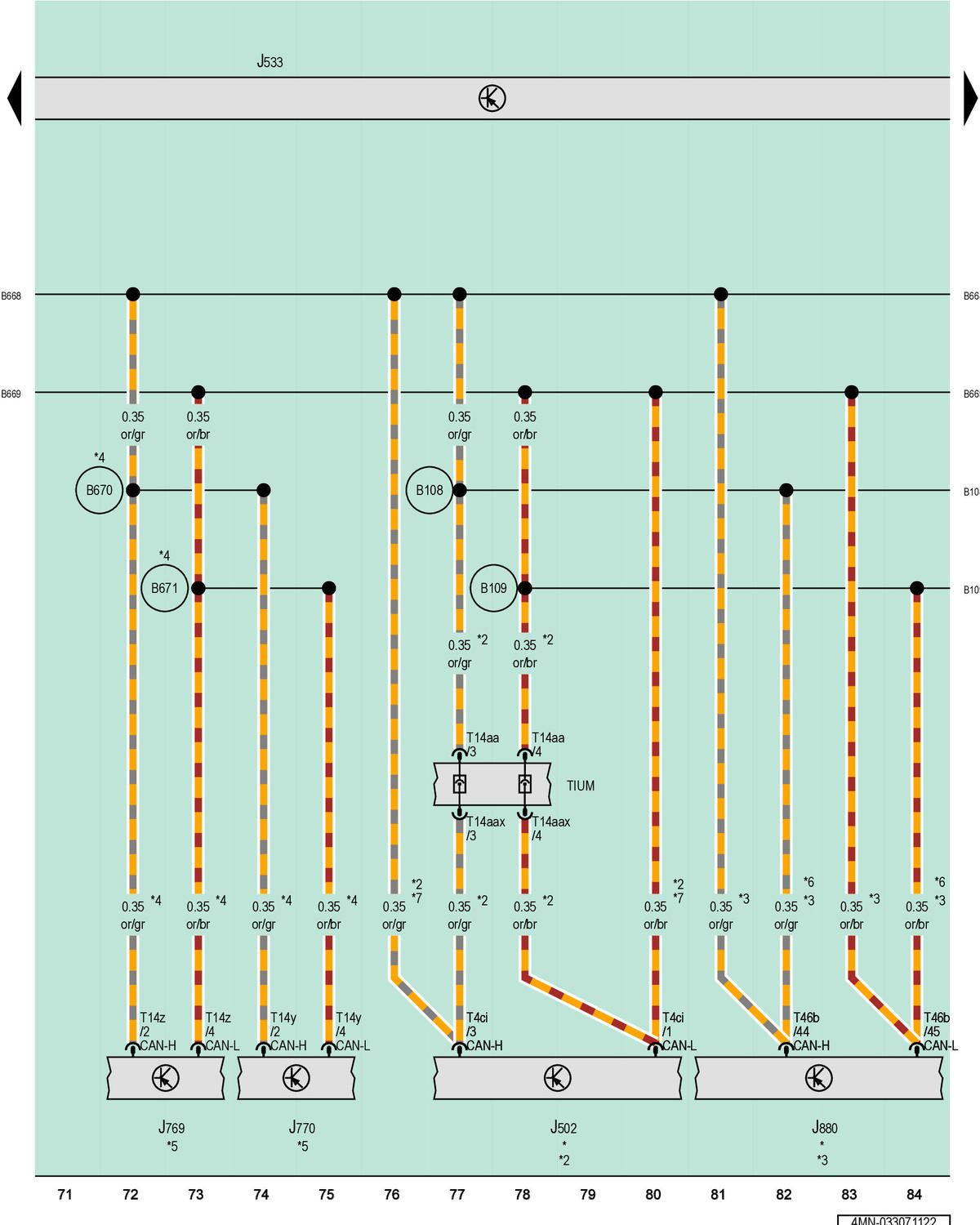

Tire Pressure Monitoring Control Module, Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Reducing Agent Metering System Control Module
J502
Tire Pressure Monitoring Control Module
J533
Data Bus on Board Diagnostic Interface
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J880
Reducing Agent Metering System Control Module
T4ci
4-Pin Connector, Gray
T14aa
14-Pin Connector, Black
T14aax
14-Pin Connector, Black
T14y
14-Pin Connector, Black
T14z
14-Pin Connector, Black
T46b
46-Pin Connector, Black
TIUM
Coupling Point in Interior, Bottom Center
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
B670
CAN Bus Extended High Connection 3 (in Main Wiring Harness)
B671
CAN Bus Extended Low Connection 3 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with Tire Pressure Monitoring
*3
For Vehicles with Reducing Agent Metering System
*4
For Vehicles with Lane Change Assistance
*5
Refer to Applicable Lane Change Assistance Wiring Diagram
*6
For Vehicles with Rearview Camera System
*7
Refer to Applicable Dynamic Sway Stabilization Wiring Diagram
