Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING: Removing

If the control module is replaced, the test plan to replace the control module must be performed.

-- Perform the "control module, replacing" function using the => . Refer to Diagnostic Entries .

-- Remove the center console. Refer to CENTER CONSOLE, REMOVING AND INSTALLING .

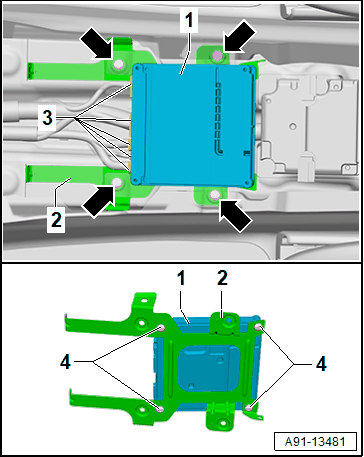

-- Disconnect the connectors -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

-- Remove the Control Module for Emergency Call Module and Communication Unit -J949- -1- with the bracket -2-.

-- Remove the bolts -4-.

-- Remove the control module -1-.
