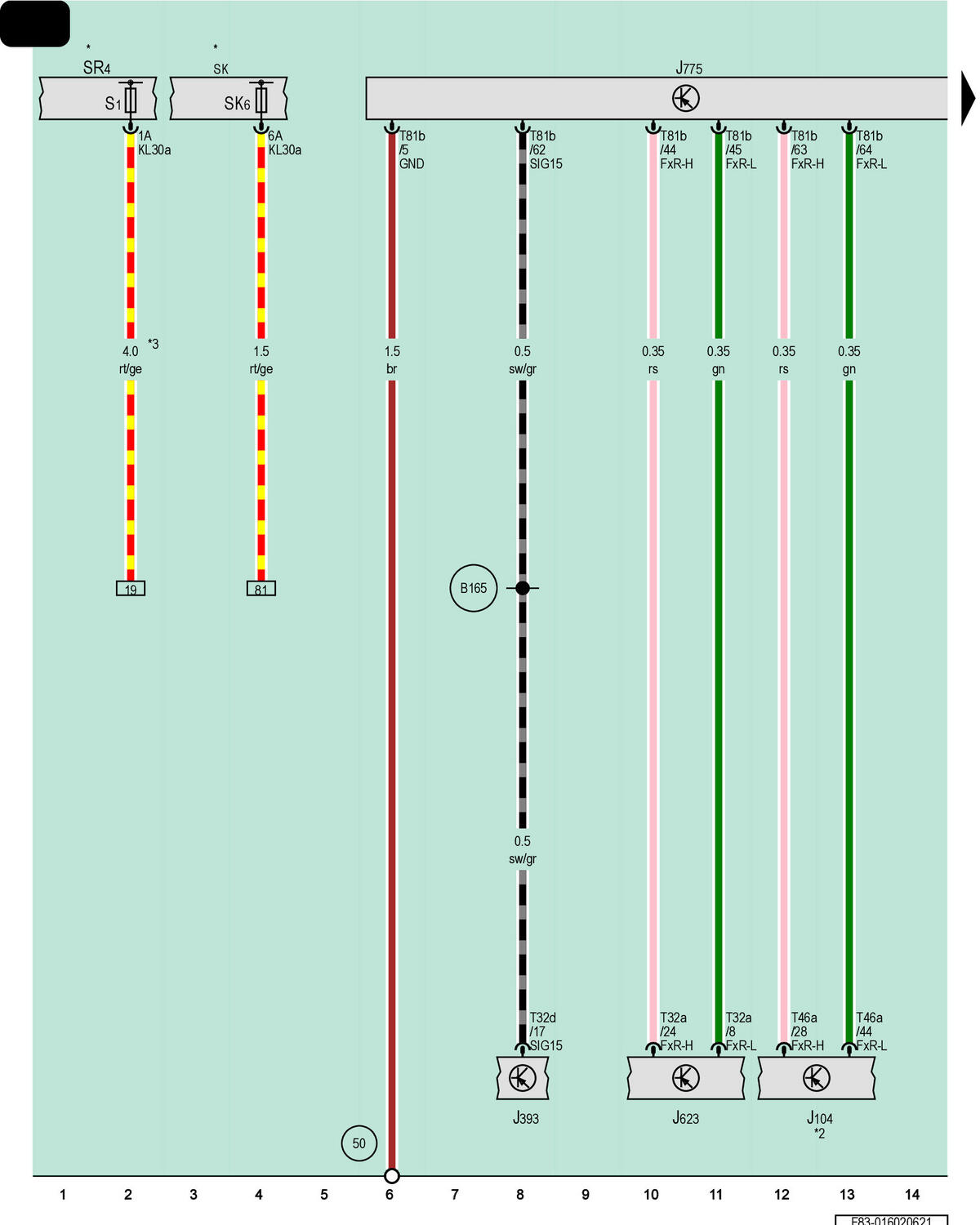

Abs Control Module, Comfort System Central Control Module, Engine/Motor Control Module, Drivetrain Control Module

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J393

Comfort System Central Control Module

J623

Engine/Motor Control Module

J775

Drivetrain Control Module

S1

Fuse 1 (On Fuse Panel)

SK

Fuse Panel K

SR4

Relay and Fuse Panel 4

SK6

Fuse 6 on Fuse Panel K

T32a

32-Pin Connector, Gray

T32d

32-Pin Connector, Black

T46a

46-Pin Connector, Black

T81b

81-Pin Connector, Black

50

Ground Connection in Luggage Compartment, Left

B165

Positive Connection 2 (15) (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment

*2

Refer to Applicable Brake System Wiring Diagram

*3

For Vehicles with Air Suspension
