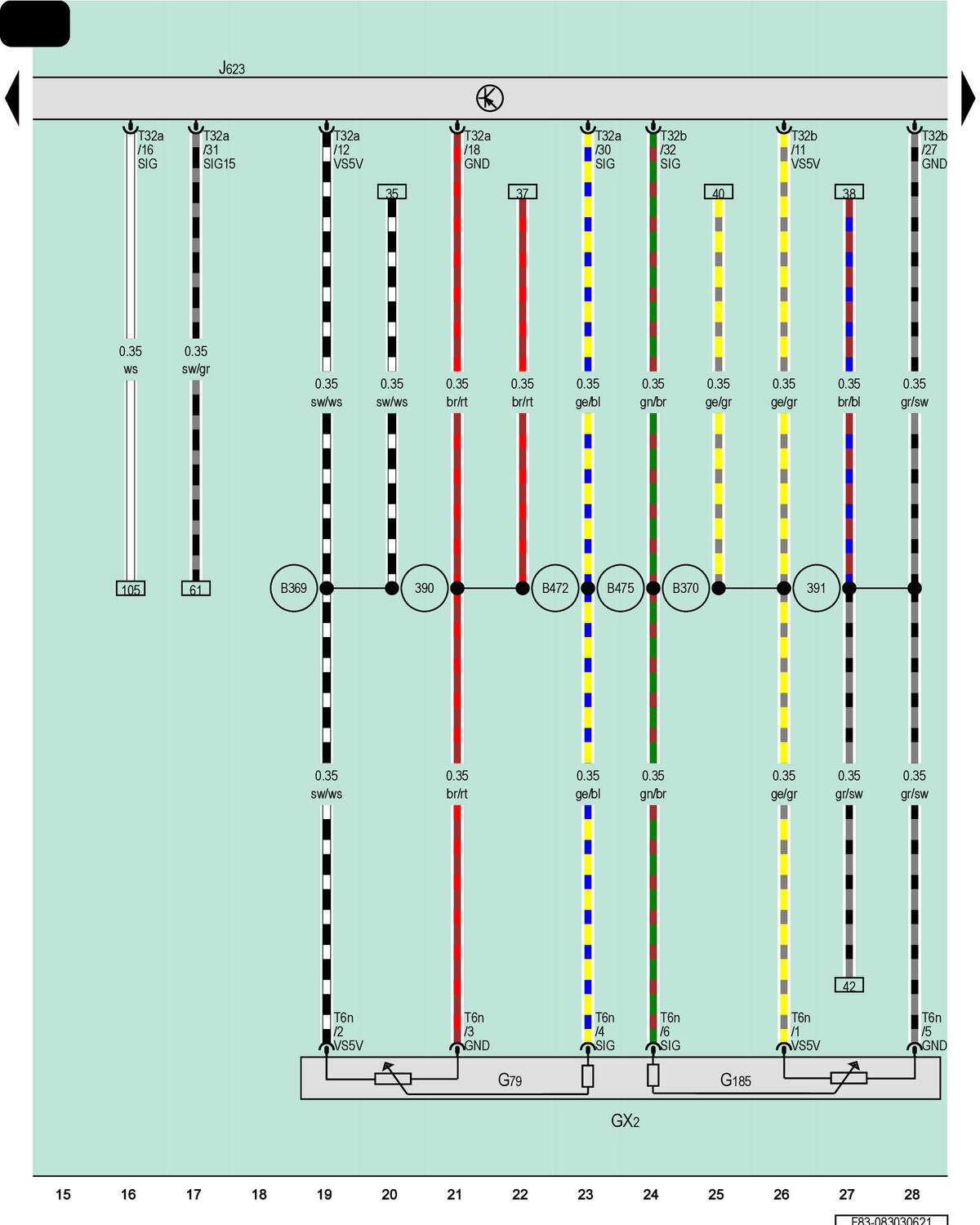

Accelerator Pedal Module, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

GX2

Accelerator Pedal Module

G79

Accelerator Pedal Position Sensor

G185

Accelerator Pedal Position Sensor 2

J623

Engine/Motor Control Module

T6n

6-Pin Connector, Black

T32a

32-Pin Connector, Gray

T32b

32-Pin Connector, Blue

390

Ground Connection 25 (in Main Wiring Harness)

391

Ground Connection 26 (in Main Wiring Harness)

B369

Connection 1 (5V) (in Main Wiring Harness)

B370

Connection 2 (5V) (in Main Wiring Harness)

B472

Connection 8 (in Main Wiring Harness)

B475

Connection 11 (in Main Wiring Harness)
