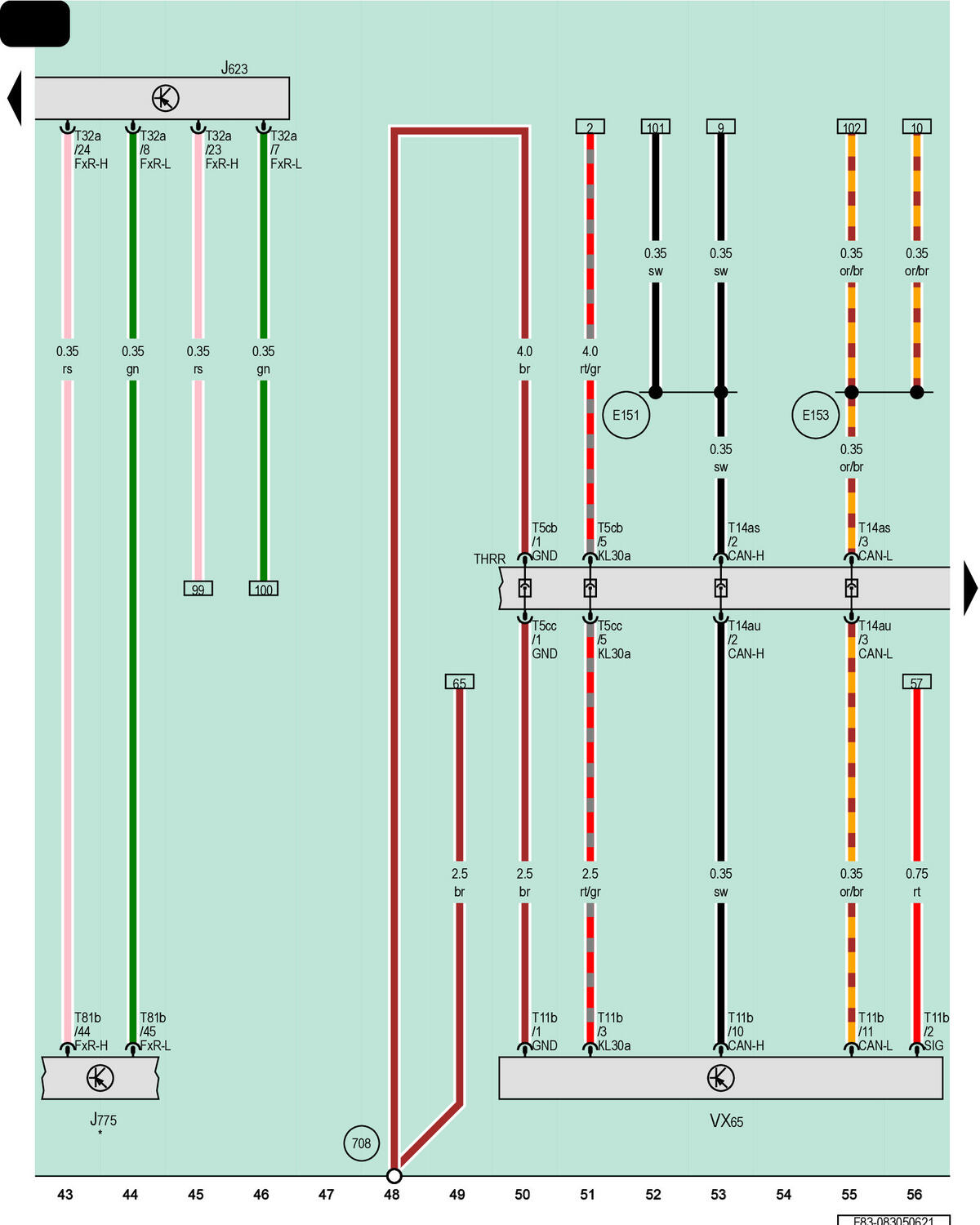

Engine/Motor Control Module, Drivetrain Control Module, Gear Actuator

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

J775

Drivetrain Control Module

T5cb

5-Pin Connector, Black

T5cc

5-Pin Connector, Black

T11b

11-Pin Connector, Black

T14as

14-Pin Connector, Black

T14au

14-Pin Connector, Black

T32a

32-Pin Connector, Gray

T81b

81-Pin Connector, Black

THRR

Coupling Point in Luggage Compartment, Right

VX65

Gear Actuator

708

Ground Connection 2 on Right Rear Chassis Side Member

E151

Connection 1 (CAN Bus, Engine/Motor Control Module, High)

E153

Connection 1 (CAN Bus, Engine/Motor Control Module, Low)

*

Refer to Applicable Wiring Diagram for the Self-Leveling System
