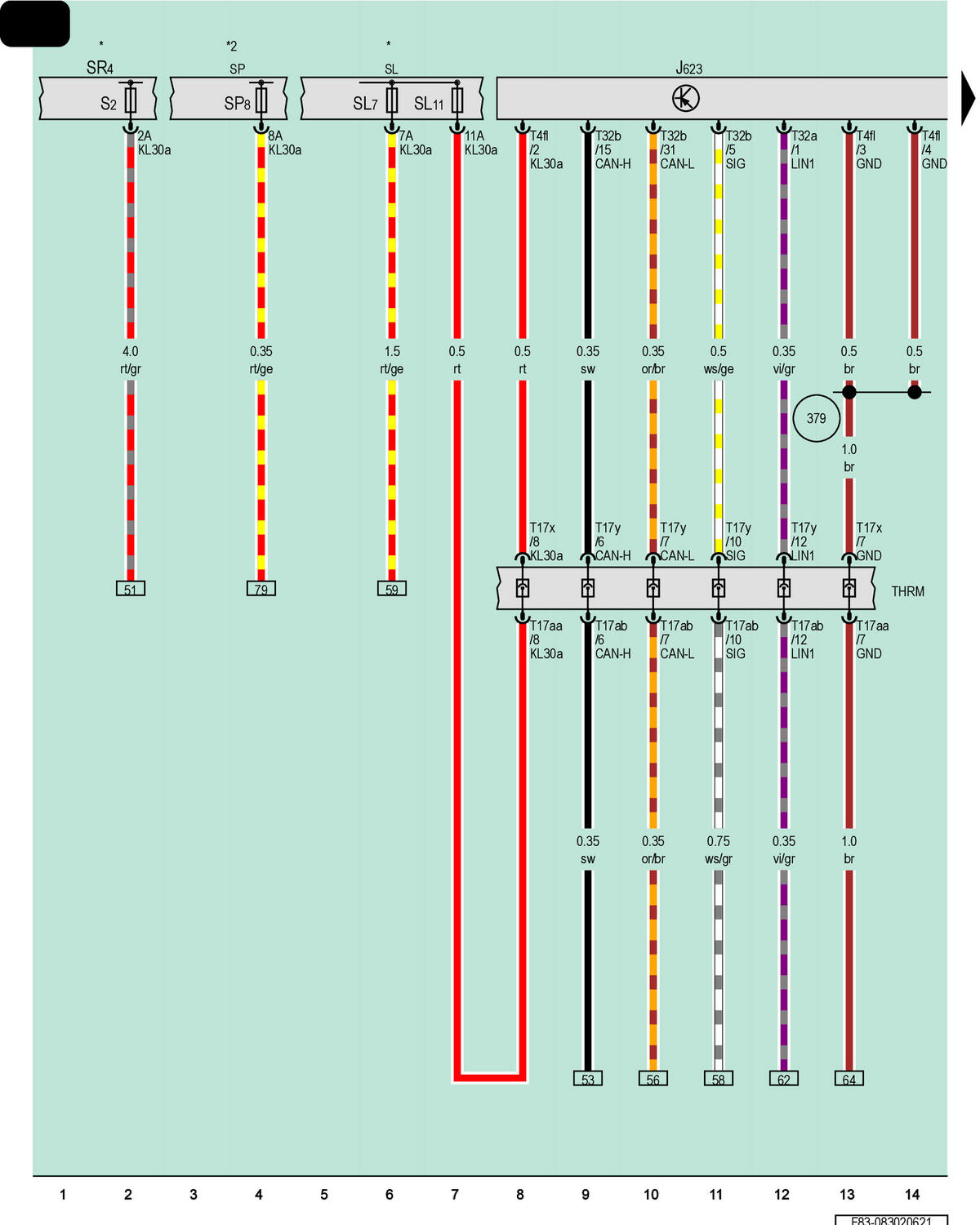

Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J623

Engine/Motor Control Module

S2

Fuse 2 (On Fuse Panel)

SL

Fuse Panel L

SL7

Fuse 7 on Fuse Panel L

SL11

Fuse 11 on Fuse Panel L

SP

Fuse Panel P

SR4

Relay and Fuse Panel 4

SP8

Fuse 8 on Fuse Panel P

T4fl

4-Pin Connector, Black

T17aa

17-Pin Connector, Black

T17ab

17-Pin Connector, Red

T17x

17-Pin Connector, Black

T17y

17-Pin Connector, Red

T32a

32-Pin Connector, Gray

T32b

32-Pin Connector, Blue

THRM

Coupling Point in Luggage Compartment, Center

379

Ground Connection 14 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Luggage Compartment

*2

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
