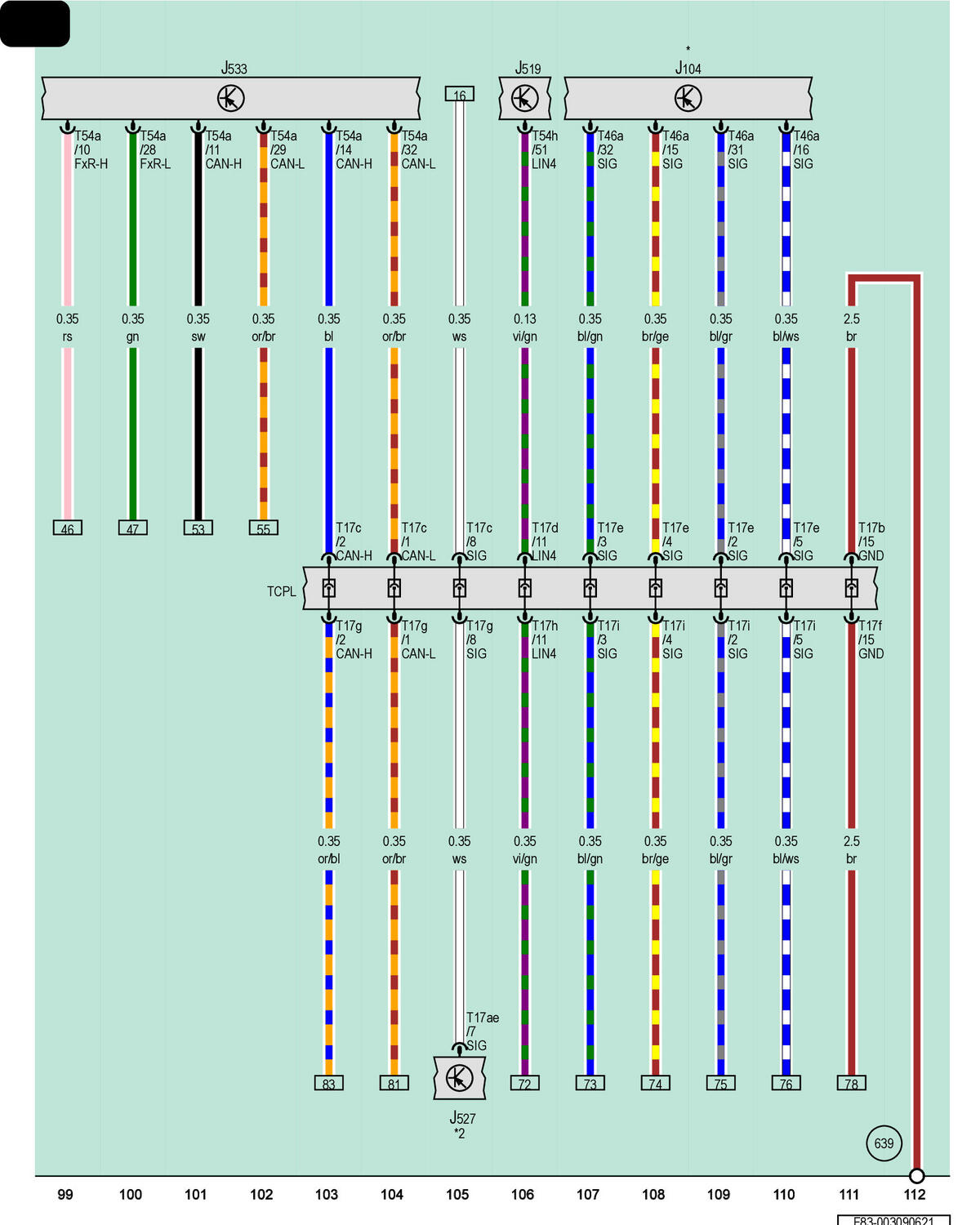

Abs Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

J104

ABS Control Module

J519

Vehicle Electrical System Control Module

J527

Steering Column Electronics Control Module

J533

Data Bus on Board Diagnostic Interface

T17ae

17-Pin Connector, Yellow

T17b

17-Pin Connector, Brown

T17c

17-Pin Connector, Red

T17d

17-Pin Connector, Blue

T17e

17-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17g

17-Pin Connector, Red

T17h

17-Pin Connector, Blue

T17i

17-Pin Connector, Black

T46a

46-Pin Connector, Black

T54a

54-Pin Connector, Black

T54h

54-Pin Connector, Black

TCPL

Coupling Point on Instrument Panel, Left

639

Ground Connection on Left A-Pillar

*

Refer to Applicable Brake System Wiring Diagram

*2

Refer to Applicable Steering Wheel Wiring Diagram
