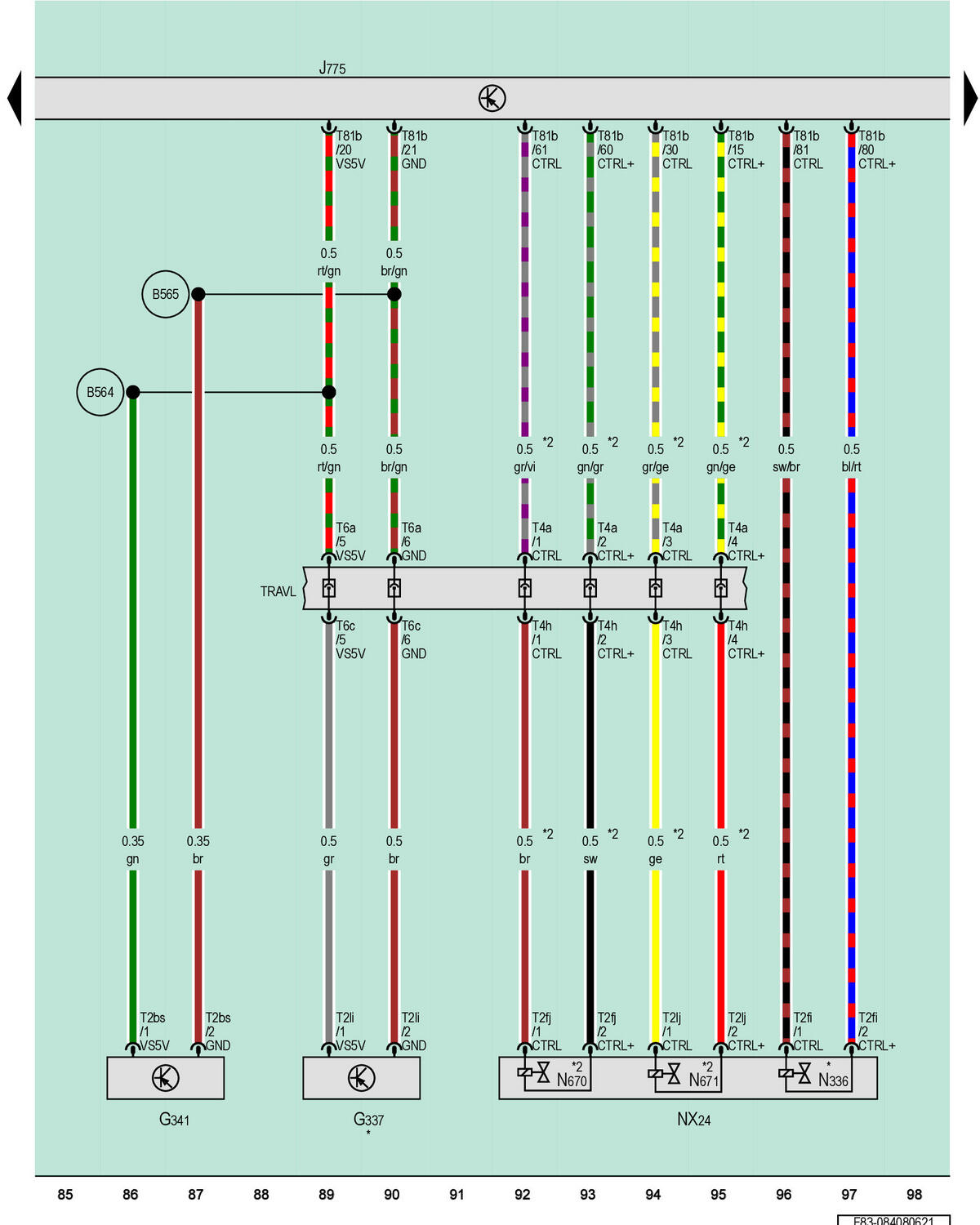

Left Front Wheel Acceleration Sensor, Left Front Body Acceleration Sensor, Drivetrain Control Module, Left Front Suspension Strut Module

Courtesy of AUDI OF AMERICA, LLC

G337

Left Front Wheel Acceleration Sensor

G341

Left Front Body Acceleration Sensor

J775

Drivetrain Control Module

NX24

Left Front Suspension Strut Module

N336

Left Front Damping Adjustment Valve

N670

Left Front Air Spring Additional Volume Valve 1

N671

Left Front Air Spring Additional Volume Valve 2

T2bs

2-Pin Connector, Yellow

T2fi

2-Pin Connector, Brown

T2fj

2-Pin Connector, Black

T2li

2-Pin Connector, Black

T2lj

2-Pin Connector, Black

T4a

4-Pin Connector, Black

T4h

4-Pin Connector, Black

T6a

6-Pin Connector, Black

T6c

6-Pin Connector, Black

T81b

81-Pin Connector, Black

TRAVL

Left Front Wheel Housing Wiring Coupling Point

B564

Connection 31 (in Main Wiring Harness)

B565

Connection 32 (in Main Wiring Harness)

Pre-Wired Component

For Vehicles with Air Suspension
