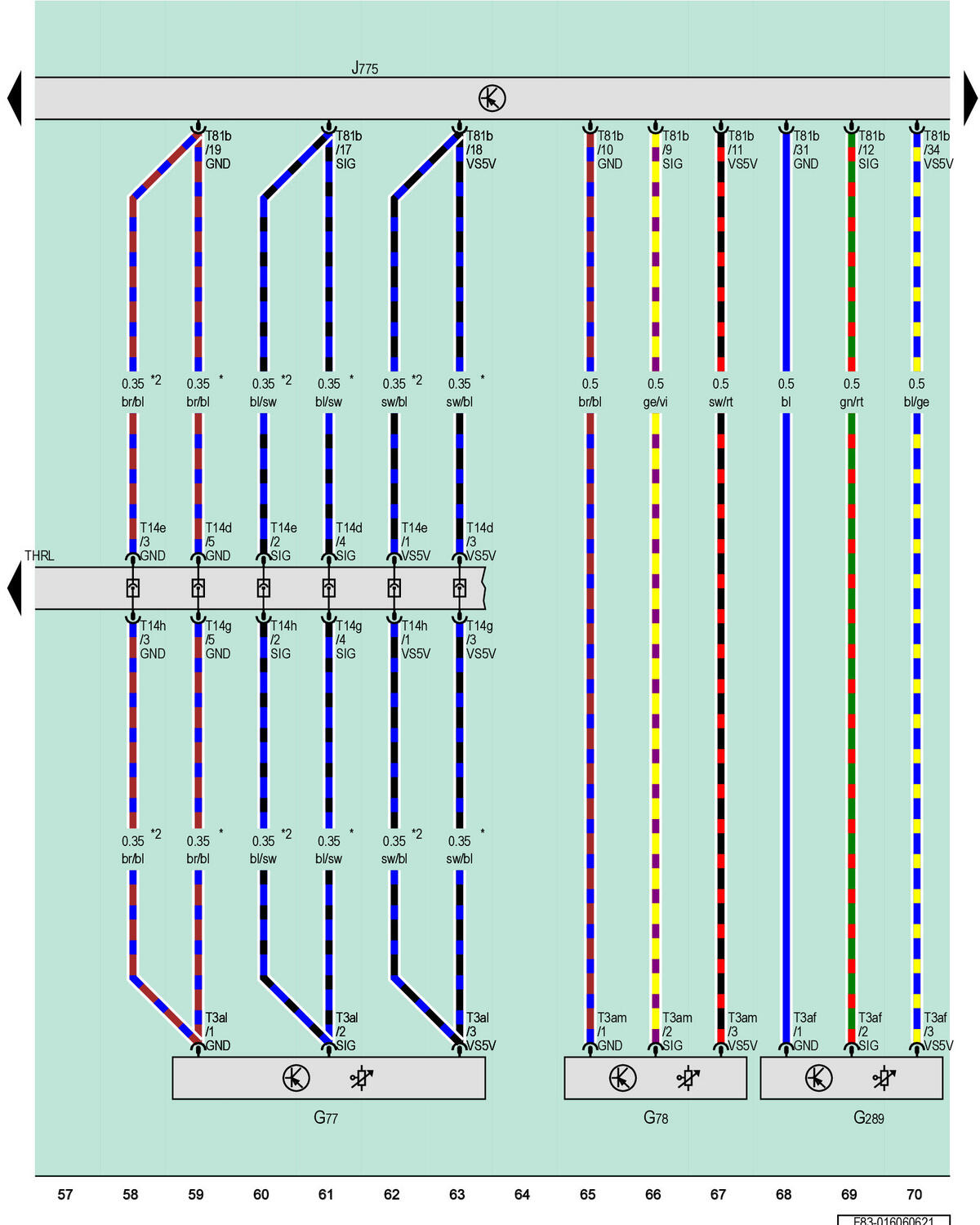

Right Rear Level Control System Sensor, Left Front Level Control System Sensor, Right Front Level Control System Sensor, Drivetrain Control Module

Courtesy of AUDI OF AMERICA, LLC

G77

Right Rear Level Control System Sensor

G78

Left Front Level Control System Sensor

G289

Right Front Level Control System Sensor

J775

Drivetrain Control Module

T3af

3-Pin Connector, Black

T3al

3-Pin Connector, Black

T3am

3-Pin Connector, Black

T14d

14-Pin Connector, Gray

T14e

14-Pin Connector, Black

T14g

14-Pin Connector, Gray

T14h

14-Pin Connector, Black

T81b

81-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

*

Through January 2021

*2

From January 2021
