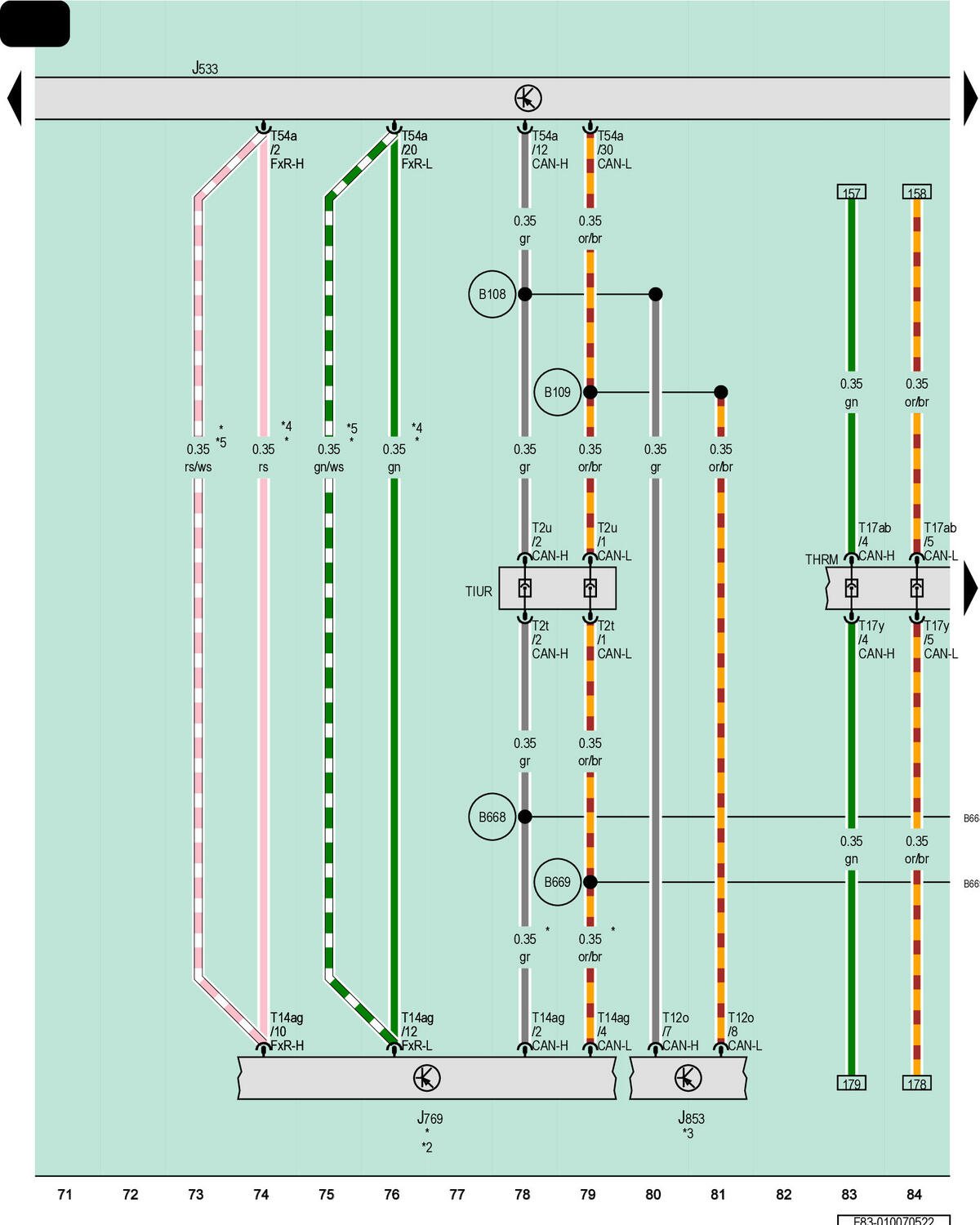

Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Night Vision System Control Module

Courtesy of AUDI OF AMERICA, LLC

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

J853

Night Vision System Control Module

T2t

2-Pin Connector, Black

T2u

2-Pin Connector, Black

T12o

12-Pin Connector, Black

T14ag

14-Pin Connector, Black

T17ab

17-Pin Connector, Red

T17y

17-Pin Connector, Red

T54a

54-Pin Connector, Black

THRM

Coupling Point in Luggage Compartment, Center

TIUR

Coupling Point in Interior, Bottom Right

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

B668

CAN Bus Extended High Connection 2 (in Main Wiring Harness)

B669

CAN Bus Extended Low Connection 2 (in Main Wiring Harness)

*

For Vehicles with Lane Change Assistance

*2

Refer to Applicable Lane Change Assistance Wiring Diagram

*3

Refer to Applicable Night Vision System Wiring Diagram

*4

Omitted as a Running Change

*5

Running Change
