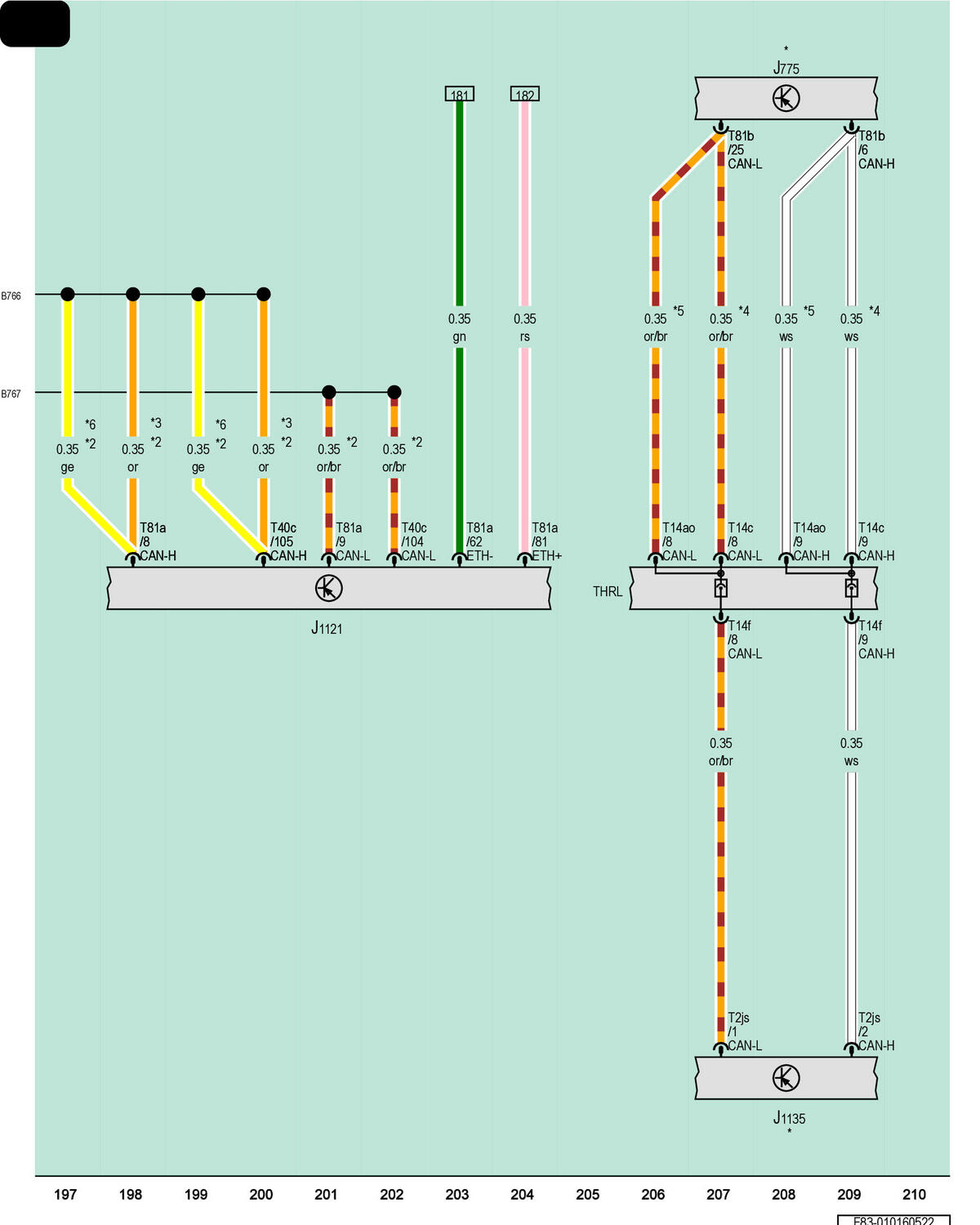

Drivetrain Control Module, Driver Assistance Systems Control Module, Level Control System Compressor Electronics

Courtesy of AUDI OF AMERICA, LLC

J775

Drivetrain Control Module

J1121

Driver Assistance Systems Control Module

J1135

Level Control System Compressor Electronics

T2js

2-Pin Connector, Black

T14ao

14-Pin Connector, Black

T14c

14-Pin Connector, Black

T14f

14-Pin Connector, Black

T40c

40-Pin Connector, Black

T81a

81-Pin Connector, Black

T81b

81-Pin Connector, Black

THRL

Coupling Point in Luggage Compartment, Left

B766

High Bus Connection 2 (in Interior Wiring Harness)

B767

Low Bus Connection 2 (in Interior Wiring Harness)

*

Refer to Applicable Wiring Diagram for the Self-Leveling System

*2

Depending on Equipment

*3

Omitted as a Running Change

*4

Through June 2021

*5

From June 2021

*6

Running Change
