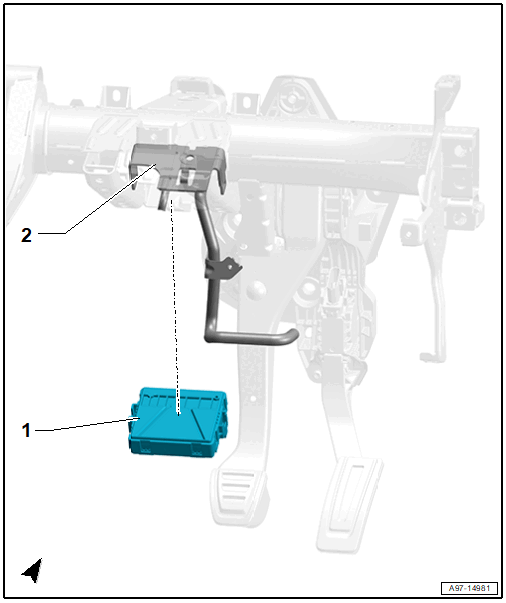

Overview - Data Bus On Board Diagnostic Interface

The overview shows a RHD vehicle as an example. For LHD vehicles the layout is a mirror image.

Courtesy of AUDI OF AMERICA, LLC

1. Data Bus on Board Diagnostic Interface -J533-
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, REMOVING AND INSTALLING .
2. Crash Bolster
