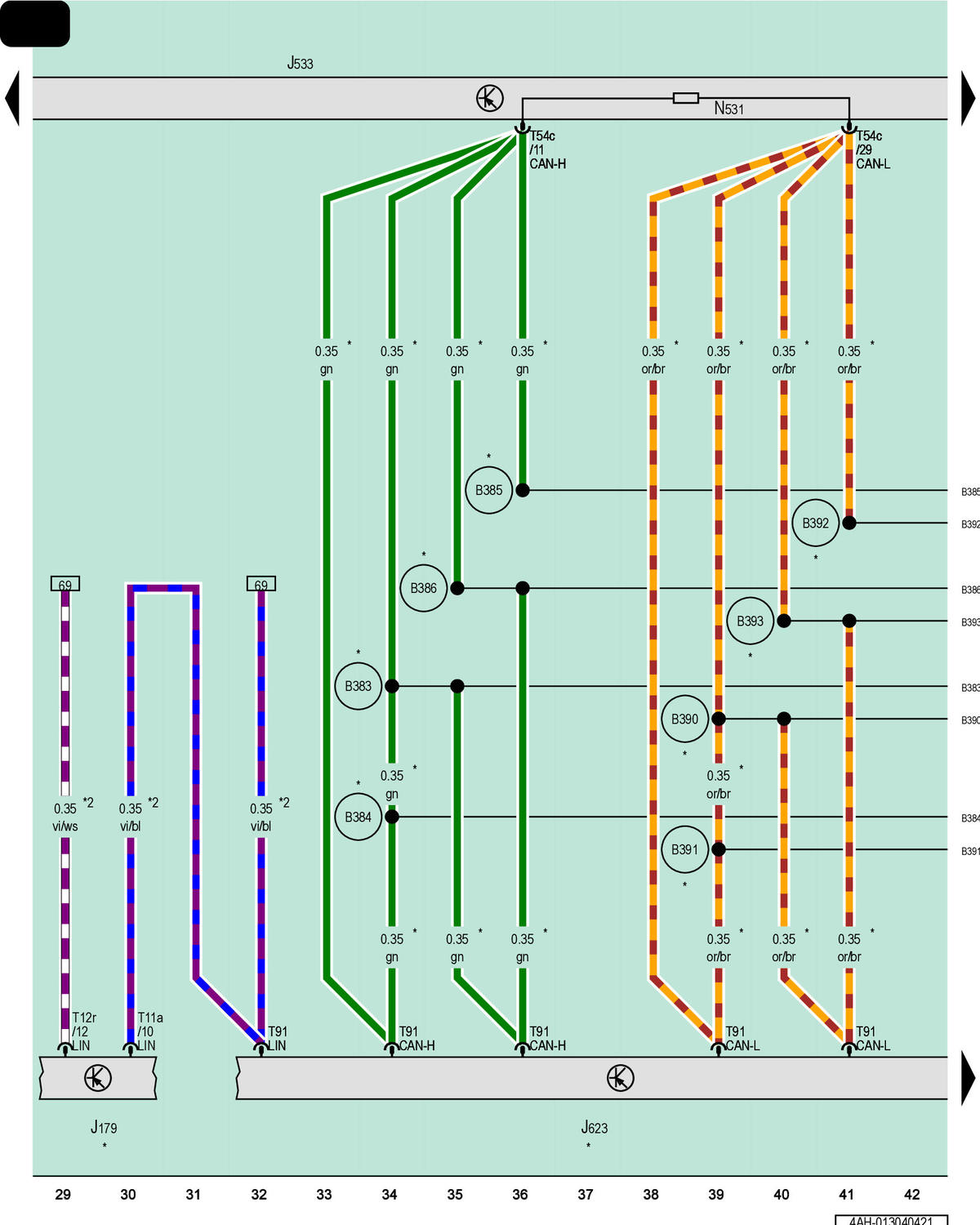

Automatic Glow Time Control Module, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of AUDI OF AMERICA, LLC

J179

Automatic Glow Time Control Module

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

N531

CAN Bus Wires End Resistance

T11a

11-Pin Connector

T12r

12-Pin Connector, Black

T54c

54-Pin Connector, Black

T91

91-Pin Connector, Black

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B386

Powertrain CAN Bus High Connection 4 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

B393

Powertrain CAN Bus Low Connection 4 (in Main Wiring Harness)

Refer to Applicable Engine Wiring Diagram

Depending on Equipment
