Garage Door Opener Control Module, Removing And Installing: Removing

If the Garage Door Opener Control Module -J530- is being replaced, then the test plan for replacing the control module must be performed.

-- Perform the "control module, replacing" function using the Vehicle Diagnostic Tester. Refer to Diagnostic Entries .

Continuation

-- Remove the rear bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

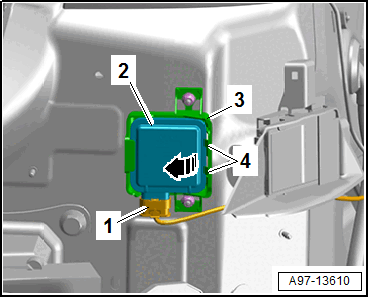

-- Disconnect the connector -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -4-.

-- Remove the Garage Door Opener Control Module -J530- -2- from the mount -3- -arrow-.
