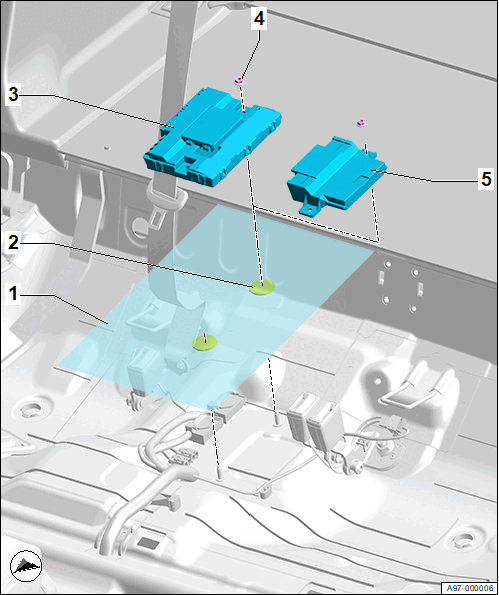

Overview - Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. Protective Cover
2. Sealing Washer
   • shared component with the protective cover
   • Quantity: 2
3. Data Bus On Board Diagnostic Interface -J533- - High
   • With Telematics Emergency Battery -A16-
   • Refer to Data Bus on Board Diagnostic Interface J533, Removing and Installing  .
   • Refer to TELEMATICS EMERGENCY BATTERY -A16-, REMOVING AND INSTALLING .
4. Nut
   • Quantity: 2
   • 5 Nm
5. Data Bus On Board Diagnostic Interface -J533- - Low
   • Refer to Data Bus on Board Diagnostic Interface J533, Removing and Installing  .
