Control Module/Amplifier For Digital Sound System, Removing And Installing, MIB 3: Removing

-- Raise the front seat into its highest position and then move it all the way back.

-- Turn off the ignition and all electrical equipment. Set the ignition key outside of the vehicle.

-- Remove the floor mat.

-- Remove the expanding rivets -2- and then the cover -1-.

Courtesy of AUDI OF AMERICA, LLC

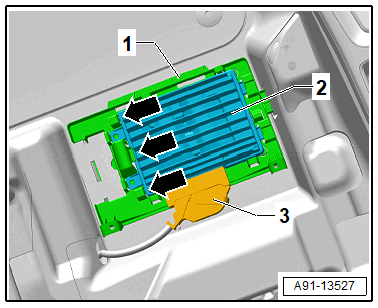

-- Disconnect the connector -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the retainers -arrows-.

-- Remove the Digital Sound System Control Module -J525- -2-.
