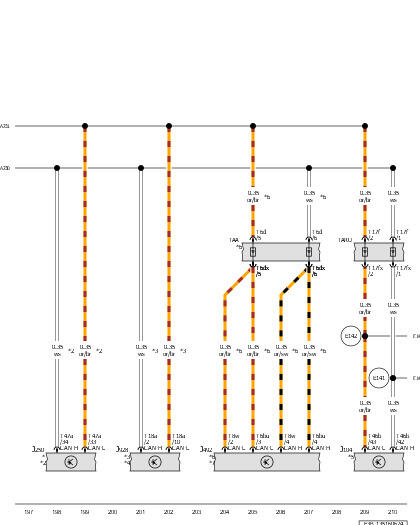

Abs Control Module, Electronic Damping Control Module, All-Wheel Drive Control Module, Peripheral Camera Control Module
J104
ABS Control Module
J250
Electronic Damping Control Module
J492
All-Wheel Drive Control Module
J928
Peripheral Camera Control Module
T6bu
6-Pin Connector, Black
T6d
6-Pin Connector, Black
T6dx
6-Pin Connector, Black
T8w
8-Pin Connector, Black
T17f
17-Pin Connector, Black
T17fx
17-Pin Connector, Black
T18a
18-Pin Connector, Black
T46b
46-Pin Connector, Black
T47a
47-Pin Connector, Black
TAA
All-Wheel Drive Coupling Point
TARU
Coupling Point on Right A-Pillar, Bottom
A230
Suspension/Instrument Cluster CAN Bus High Connection 2 (in Instrument Panel Wiring Harness)
A231
Suspension/Instrument Cluster CAN Bus Low Connection 2 (in Instrument Panel Wiring Harness)
E141
Connection (CAN Bus Suspension Sensors High) (in Engine/Motor Compartment Wiring Harness)
E142
Connection (CAN Bus Suspension Sensors Low) (in Engine/Motor Compartment Wiring Harness)
*
Refer to the Applicable Adaptive Chassis DCC Wiring Diagram
*2
For Vehicles with Adaptive Chassis
*3
For Vehicles with Peripheral Camera
*4
Refer to Applicable Peripheral Camera Wiring Diagram
*5
Refer to Applicable Brake System Wiring Diagram
*6
For AWD Vehicles
*7
Refer to Applicable AWD Wiring Diagram
