Overview - Selector Lever Handle

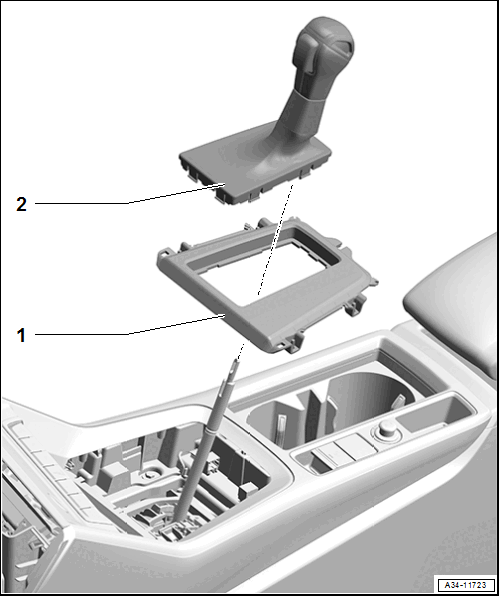

Fig 1: Exploded View Of Selector Lever Handle, Audi Q3

Courtesy of AUDI OF AMERICA, LLC

1. Selector Lever Transmission Range Position Display Unit -Y26-
   • Unit With Trim
   • Removing And Installing. Refer To The Appropriate Service Information .
2. Selector Lever Handle
   • With Selector Lever Boot
   • Removing And Installing. Refer To SELECTOR LEVER HANDLE, REMOVING AND INSTALLING .
   • Locking Button On Selector Lever Handle, Bringing Into Installation Position. Refer To BUTTON IN HANDLE, MOVING INTO INSTALLATION POSITION .
