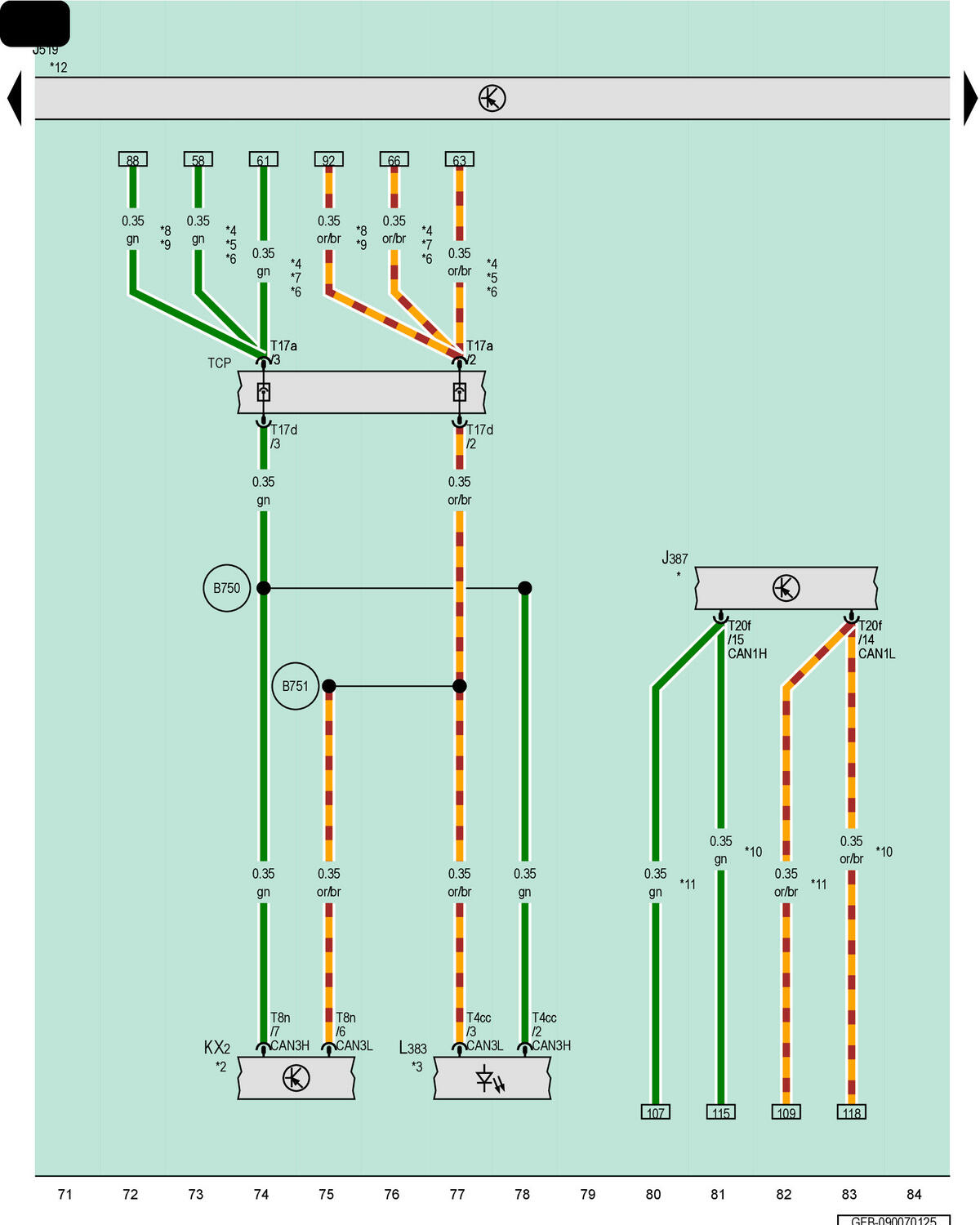

Front Passenger Door Control Module, Vehicle Electrical System Control Module, Instrument Cluster, Dynamic Information Lighting Strip 1

Courtesy of AUDI OF AMERICA, LLC

J387

Front Passenger Door Control Module

J519

Vehicle Electrical System Control Module

KX2

Instrument Cluster

L383

Dynamic Information Lighting Strip 1

T4cc

4-Pin Connector, Brown

T8n

8-Pin Connector, Black

T17a

17-Pin Connector, Blue

T17d

17-Pin Connector, Blue

T20f

20-Pin Connector, White

TCP

Coupling Point on Instrument Panel

B750

CAN Bus High Display and Control Connection 1

B751

CAN Bus Low Display and Control Connection 1

*

Refer to Applicable Front Passenger Door Control Module Wiring Diagram

*2

Refer to Applicable Wiring Diagram for Instrument Cluster

*3

Refer to Applicable Wiring Diagram for Interior Lamps

*4

For Vehicles Without Interior Monitoring

*5

For Vehicles with Keyless Access Authorization

*6

For Vehicles Without Cell Phone Access System

*7

For Vehicles Without Keyless Access Authorization

*8

For Vehicles with Interior Monitoring

*9

For Vehicles with Cell Phone Access System

*10

For LHD Vehicles

*11

For RHD Vehicles

*12

Refer to Applicable Convenience System Wiring Diagram
