Instrument Cluster

Courtesy of AUDI OF AMERICA, LLC

KX2

Instrument Cluster

T8n

8-Pin Connector, Black

B1063

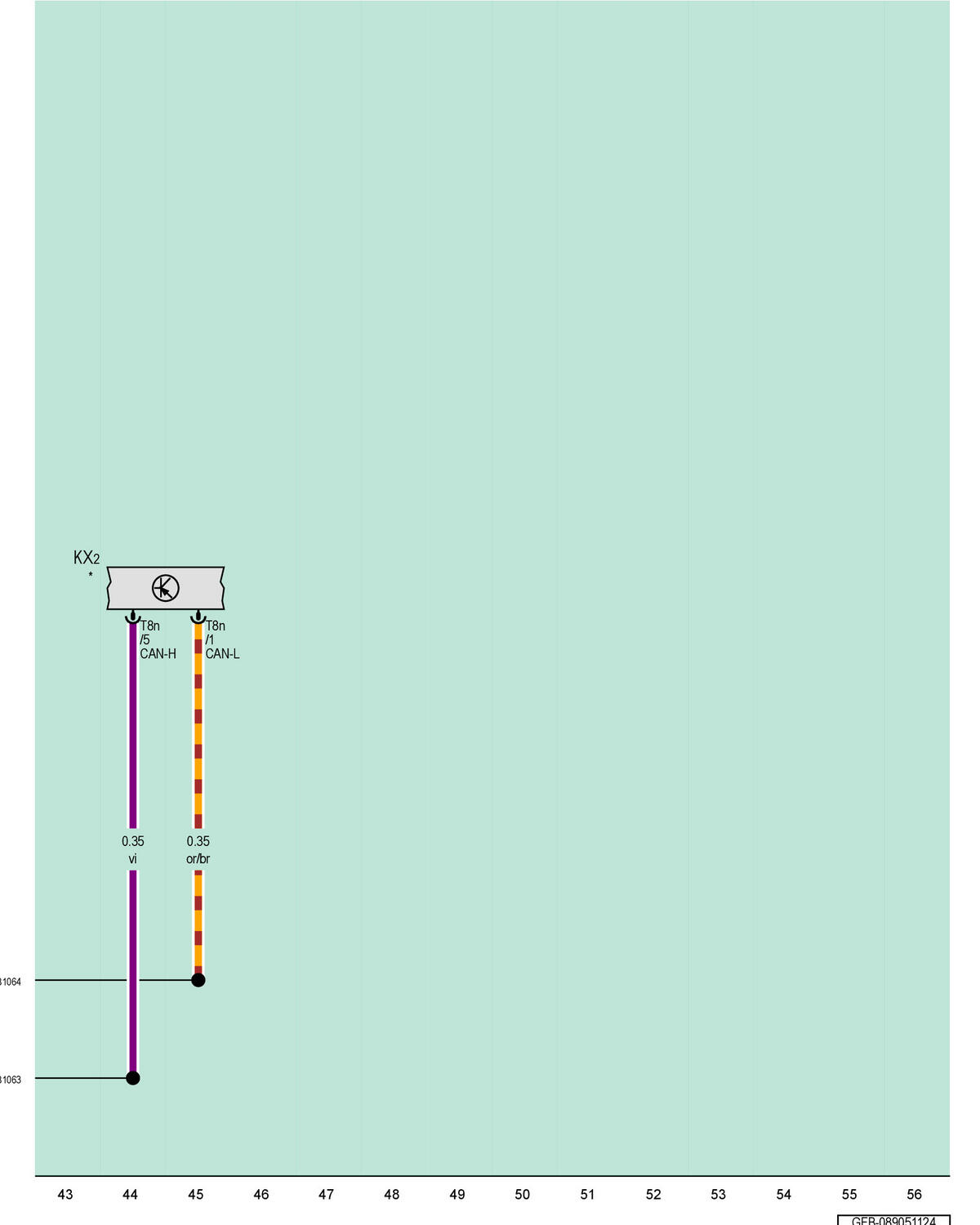

CAN Bus 1, J794 High Connection 1 (in Instrument Panel Wiring Harness)

B1064

CAN Bus 1, J794 Low Connection 1 (in Instrument Panel Wiring Harness)

*

Refer to Applicable Wiring Diagram for Instrument Cluster
