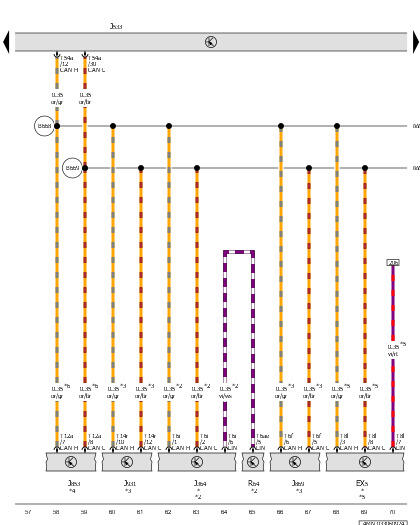

Interior Rearview Mirror, Auxiliary Heater Control Module, Data Bus On Board Diagnostic Interface, Night Vision System Control Module, Structure-Borne Sound Control Module, Assembly Mount Control Module, Parking Heater Radio Receiver
EX5
Interior Rearview Mirror
J364
Auxiliary Heater Control Module
J533
Data Bus on Board Diagnostic Interface
J853
Night Vision System Control Module
J869
Structure-Borne Sound Control Module
J931
Assembly Mount Control Module
R64
Parking Heater Radio Receiver
T6ae
6-Pin Connector, Blue
T6f
6-Pin Connector, Black
T6i
6-Pin Connector, Black
T8l
8-Pin Connector, Black
T12a
12-Pin Connector, Black
T14r
14-Pin Connector, Black
T54a
54-Pin Connector, Black
B668
CAN Bus Extended High Connection 2 (in Main Wiring Harness)
B669
CAN Bus Extended Low Connection 2 (in Main Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
For Vehicles with a Parking Heater
*3
Depending on Equipment
*4
Refer to Applicable Night Vision System Wiring Diagram
*5
For Vehicles with Automatic Dimming Interior Rearview Mirror
*6
For Vehicles with Night Vision System
