00 General, Technical Data: Tools: Notes

Special tools and workshop equipment required

• Resistance Spot Welder:VAS 6530A
• Resistance Spot Welder:VAS 6545A
• Resistance Spot Welder: VAS 6755
• Resistance Spot Welder:VAS 821 101
• Resistance Spot Welder:VAS 821 201
• Gas-Shielded Welder 195A:VAS 6044A
• Gas-Shielded Welder:VAS 6045A
• Gas-Shielded Welder:VAS 821 001
• Gas-Shielded Welder:VAS 821 003
• Gas-Shielded Welder:VAS 821 005
• Welding Tool:V.A.G 1959A
• FD Bolt Socket:VAS852007A
• Flow Drill Socket Repair Set:VAS 6631
• Measuring and Alignment System:VAS 6526  Basic
• Measuring and Alignment System - Professional:VAS 6527
• Measuring and Alignment System - Professional Plus:VAS 6528
• Pneumatic Brush Grinder Set:VAS 6446 A
• Edge Miller for Body Panels:VAS 882 005
• Flat Blade Scraper:VAS 5448
• Pneumatic-Hydraulic Riveter Set:VAS 6790
• Pneumatic-Hydraulic Riveter Set - Supplementary Riveting Set:VAS 6790/2
• Compact Riveting Device:VAS 6792
• Compact Riveting Device - Riveting Accessories:VAS 6792/1
• Compact Riveting Device - Extension:VAS 6792/2
• Rechargeable Riveter:VAS 843 001
• Rechargeable Riveter:VAS 843 003
• Rechargeable Riveter - Accessory Set 1:VAS 5279/1
• Pneumatic Body Saw:VAS 6598A
• Pneumatic Body Saw:VAS 6780
• Pneumatic Sabre Saw:VAS 882 003
• Tin Snips:VAS 5356
• Tin Snips - Right Handed:VAS 5357
• Angle Grinder:VAS 5167B
• Belt Sander:VAS 881 003
• Belt Sander:VAS 881 003A
• Pneumatic Gun - 18 Bar:VAS 6648
• Pop Rivet Pliers:V.A.G 1765C
• Pop Rivet Pliers:VAS 6792/4
• Pop Rivet Nut Pliers:VAS 5072A
  Fig 1: Pop Rivet Nut Pliers (VAS5072A)

  Courtesy of AUDI OF AMERICA, LLC
• Rivet Pliers:VAS 6967
• Pneumatic Rivet Gun:VAS 6759
• Drill - 1100 Watt:VAS 6267 A
  Fig 2: 1100 Watt Drill (VAS6267 A)

  Courtesy of AUDI OF AMERICA, LLC
• Spot Weld Breaker:VAS 6322A
  Fig 3: Spot Weld Breaker (VAS6322 A)

  Courtesy of AUDI OF AMERICA, LLC
• Spot Weld Breaker:VAS 882 001
• Double Cartridge Adhesive Gun:VAS 5237
  Fig 4: Double Cartridge Adhesive Gun (VAS5237)

  Courtesy of AUDI OF AMERICA, LLC
• Window Cutter:V.A.G 1561B
• Telescoping Gauge - 41.5-92.5cm:VAS 5159  or Telescoping Gauge - 92-260cm:VAS 5160
  Fig 5: Alignment Bracket Set -- VAS5160

  Courtesy of AUDI OF AMERICA, LLC
• Mechanical Door Brace:V.A.G 1438
  Fig 6: Door Brace (V.A.G 1438)

  Courtesy of AUDI OF AMERICA, LLC
• Pneumatic Adhesive Gun:V.A.G 2005 B
  Fig 7: Compressed Air - Glue Gun VAG 2005

  Courtesy of AUDI OF AMERICA, LLC

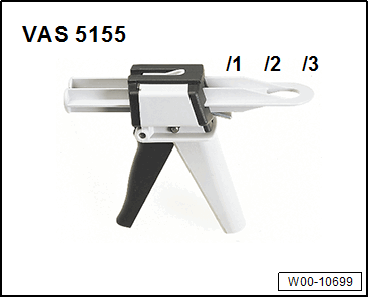

• Hand Cartridge Gun:VAS 5155
  Fig 8: Hand Cartridge Gun (VAS5155)

  Courtesy of AUDI OF AMERICA, LLC
• Double Suction Lifter:V.A.G 1344  or Installation Magnets:VAS 6739
  Fig 9: Double Suction Lifter

  Courtesy of AUDI OF AMERICA, LLC
• Adjustment Gauge:3371
  Fig 10: 3371 Special Tool

  Courtesy of AUDI OF AMERICA, LLC
• Pneumatic Cartridge Gun:V.A.G 1761/1
  Fig 11: Compressed Air Gun (V.A.G 1761/1)

  Courtesy of AUDI OF AMERICA, LLC
• Tensioning Strap:T10038
  Fig 12: Identifying Special Tools -- Tensioning Belt T10038

  Courtesy of AUDI OF AMERICA, LLC
• Cartridge Heater:V.A.G 1939A
  Fig 13: Cartridge Heater

  Courtesy of AUDI OF AMERICA, LLC
• Rechargeable Riveter:VAS 843 001
  Fig 14: Aluminum Shielded Arc Welder - (VAS6388)

  Courtesy of AUDI OF AMERICA, LLC
• Infrared Heater:VAS 6879
• Aluminum Tool Set:V.A.G 2010/2A
• Collision Tool Trolley:V.A.G 2010/2A-1
• Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A
• Torque Wrench 1783 - 2-10Nm:V.A.G 1783
• Torque Wrench, 6-50Nm:V.A.G 1331A
