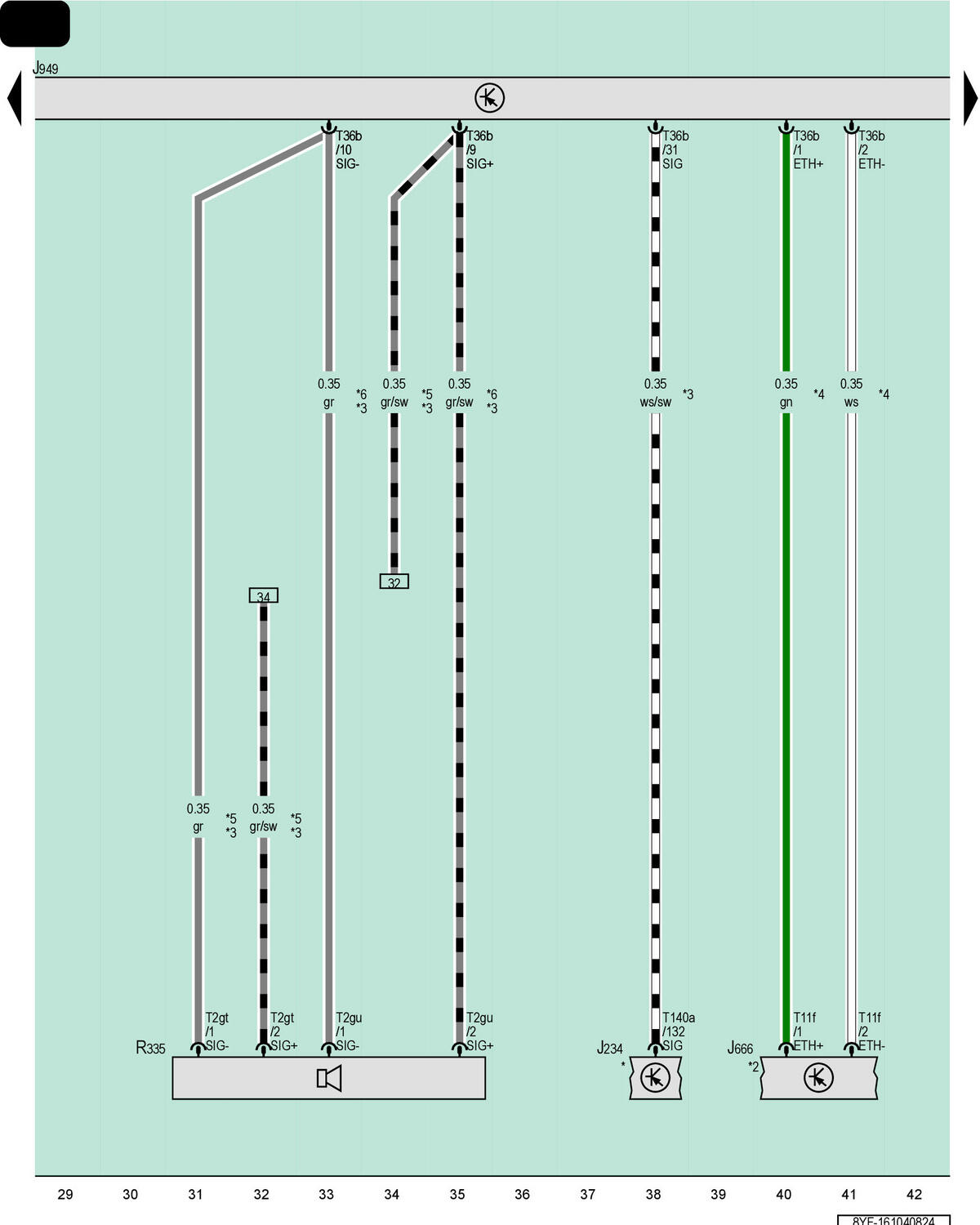

Airbag Control Module, Internet Access Control Module, Control Module For Emergency Call Module And Communication Unit, Emergency Call Module Speaker

Courtesy of AUDI OF AMERICA, LLC

J234

Airbag Control Module

J666

Internet Access Control Module

J949

Control Module for Emergency Call Module and Communication Unit

R335

Emergency Call Module Speaker

T2gt

2-Pin Connector, Black

T2gu

2-Pin Connector, Black

T11f

11-Pin Connector, Black

T36b

36-Pin Connector, Black

T140a

140-Pin Connector, Yellow

*

Refer to Applicable Airbag Wiring Diagram

*2

Refer to Wiring Diagram for Parking Aid

*3

For Vehicles with Emergency Call Function

*4

For Vehicles with Radio-Controlled Parking

*5

For Vehicles with Russia Equipment

*6

Not for Vehicles with Russia Equipment
