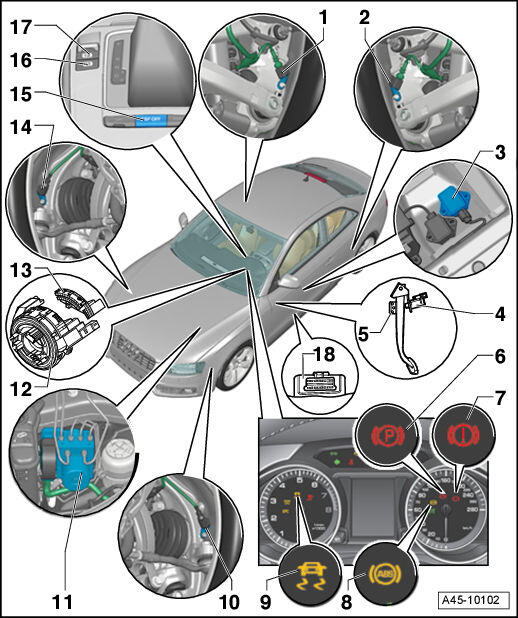

Comp. LOC. Abs: Overview
Courtesy of AUDI OF AMERICA, LLC
- 1 -
Right Rear ABS Wheel Speed Sensor -G44-
- 2 -
Left Rear ABS Wheel Speed Sensor -G46-
- 3 -
ESP sensor unit -G419-
- 3 -
Transverse acceleration sensor -G200-
- 3 -
Rotation rate sensor -G202-
- 3 -
Longitudinal acceleration sensor -G251-
- 7 -
Brake system indicator lamp -K118-
- 8 -
ABS indicator lamp -K47-
- 9 -
ASR/ESP indicator lamp -K155-
- 10 -
Left front ABS wheel speed sensor -G47-
- 13 -
Steering angle sensor -G85-
- Installed under the steering wheel
- 14 -
Right front ABS wheel speed sensor -G45-
- 15 -
Switch module in instrument panel, center -EX22-
- 15 -
ASR/ESP button -E256-
- 17 -
Parking brake pressure switch -F234-
