Overhead Camera

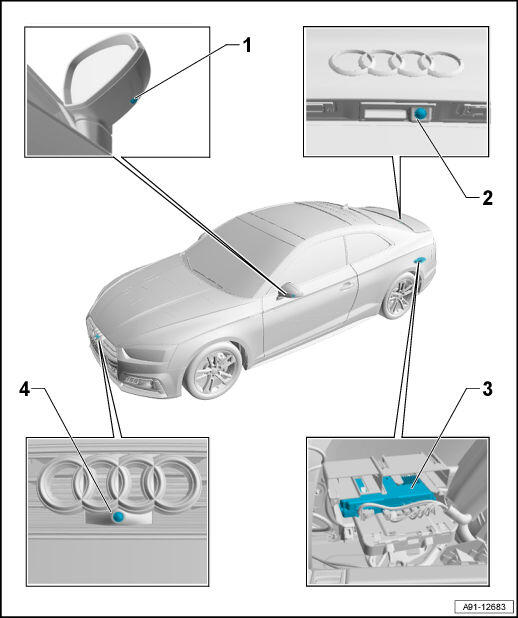

Fig 1: Identifying Overhead Camera Components

GWWA91-12683

Courtesy of AUDI OF AMERICA, LLC

1 - Right peripheral camera -R245-
1 - Left peripheral camera -R244- RH shown, LH similar
2 - Rear peripheral camera -R246-
3 - Peripheral camera control module J928
4 - Front peripheral camera -R243-
